PCA9306DC1/DG,125

In Stock: 8,630

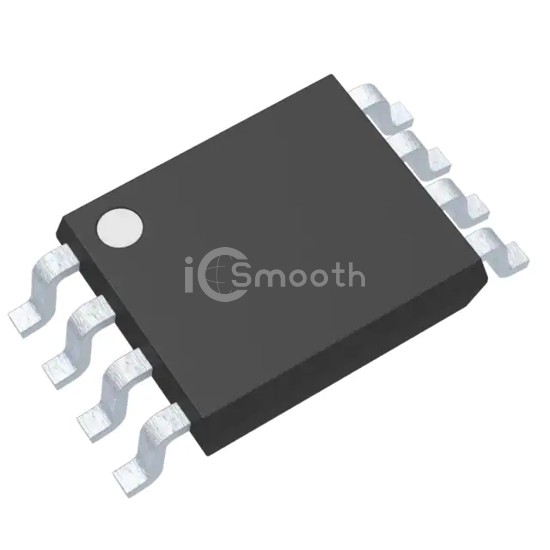

PCA9306DC1/DG,125 - NXP USA Inc. - Logic - Translators, Level Shifters
REF: PCA9306DC1/DG,125 NXP USA Inc.
PCA9306DC1/DG,125

NXP USA Inc.

IC TRNSLTR BIDIRECTIONAL 8VSSOP

PCA9306DC1/DG,125 is a Logic - Translators, Level Shifters manufactured by NXP USA Inc.. IC TRNSLTR BIDIRECTIONAL 8VSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), package / case 8-VFSOP (0.091", 2.30mm Width), output type Open Drain.

Datasheet Request a Quote

In Stock: 8,630

Specifications

16 parameters
Product StatusObsolete
Translator TypeVoltage Level
Channel TypeBidirectional
Number of Circuits1
Channels per Circuit2
Voltage - VCCA1 V ~ 3.6 V
Voltage - VCCB1.8 V ~ 5.5 V
Input Signal-
Output Signal-
Output TypeOpen Drain
Data Rate-
Operating Temperature-40°C ~ 105°C (TA)
FeaturesAuto-Direction Sensing
Mounting TypeSurface Mount
Package / Case8-VFSOP (0.091", 2.30mm Width)
Supplier Device Package8-VSSOP
