MKW40Z160VHT4

In Stock: 1,300

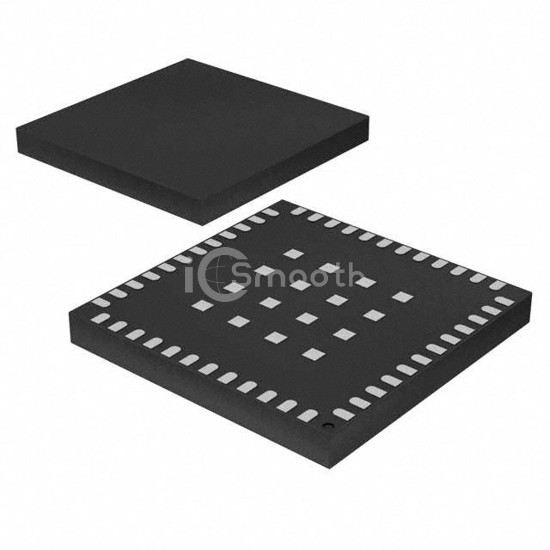

MKW40Z160VHT4 - NXP USA Inc. - RF Transceiver ICs
REF: MKW40Z160VHT4 NXP USA Inc.
MKW40Z160VHT4

NXP USA Inc.

IC RF TXRX+MCU 802.15.4 48VFQFN

MKW40Z160VHT4 is a RF Transceiver ICs manufactured by NXP USA Inc.. IC RF TXRX+MCU 802.15.4 48VFQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.45V ~ 3.6V, package / case 64-VFLGA.

Datasheet Request a Quote

In Stock: 1,300

Tiered Pricing USD
1+ $7.0500 —
10+ $6.1110 -13%
25+ $5.7844 -18%
100+ $5.3356 -24%
260+ $5.0556 -28%
520+ $4.8664 -31%
1,040+ $4.6882 -34% BEST

Specifications

19 parameters
Product StatusActive
TypeTxRx + MCU
RF Family/Standard802.15.4, Bluetooth
ProtocolBluetooth v4.1, ZigbeePRO®
ModulationGFSK, O-QPSK
Frequency2.4GHz
Data Rate (Max)1Mbps
Power - Output5dBm
Sensitivity-102dBm
Memory Size160kB Flash, 20kB SRAM
Serial InterfacesI²C, SPI, UART
GPIO28
Voltage - Supply1.45V ~ 3.6V
Current - Receiving6.5mA ~ 15.4mA
Current - Transmitting8.4mA ~ 18.5mA
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case64-VFLGA
Supplier Device Package64-VFLGA (7x7)
