MKW01Z128CHNR

In Stock: 8,372

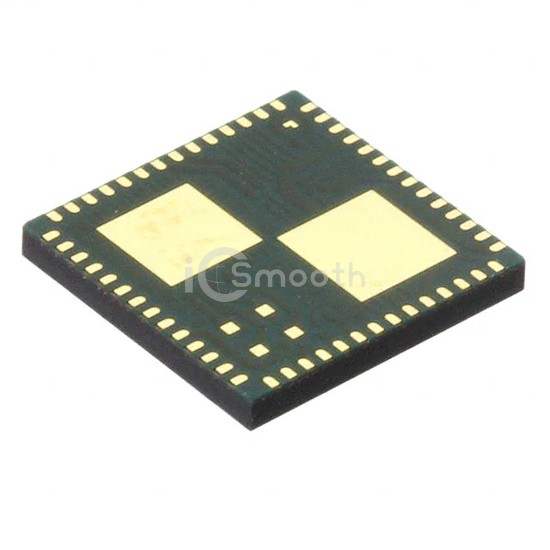

MKW01Z128CHNR - NXP USA Inc. - RF Transceiver ICs
REF: MKW01Z128CHNR NXP USA Inc.
MKW01Z128CHNR

NXP USA Inc.

IC RF TXRX+MCU ISM<1GHZ 60VFLGA

MKW01Z128CHNR is a RF Transceiver ICs manufactured by NXP USA Inc.. IC RF TXRX+MCU ISM<1GHZ 60VFLGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.8V ~ 3.6V, package / case 60-VFLGA Exposed Pad.

Datasheet Request a Quote

In Stock: 8,372

Specifications

19 parameters
Product StatusActive
TypeTxRx + MCU
RF Family/StandardGeneral ISM < 1GHz
Protocol-
ModulationFSK, GFSK, GMSK, MSK, OOK
Frequency290MHz ~ 340MHz, 424MHz ~ 510MHz, 862MHz ~ 1.02GHz
Data Rate (Max)600kbps
Power - Output17dBm
Sensitivity-120dBm
Memory Size128kB Flash, 16kB RAM
Serial InterfacesI²C, SPI, UART
GPIO6
Voltage - Supply1.8V ~ 3.6V
Current - Receiving16mA ~ 17mA
Current - Transmitting16mA ~ 95mA
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case60-VFLGA Exposed Pad
Supplier Device Package60-VFLGA (8x8)
