MC9S12XEP100CVL

In Stock: 7,666
MC9S12XEP100CVL - NXP USA Inc. - Embedded - Microcontrollers
REF: MC9S12XEP100CVL NXP USA Inc.
MC9S12XEP100CVL

NXP USA Inc.

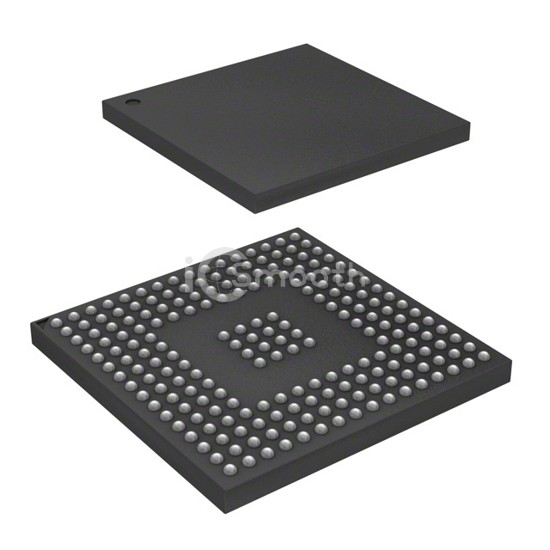

IC MCU 16BIT 1MB FLASH 208MAPBGA

MC9S12XEP100CVL is a Embedded - Microcontrollers manufactured by NXP USA Inc.. IC MCU 16BIT 1MB FLASH 208MAPBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 1.72V ~ 5.5V, package / case 208-BGA.

Datasheet Request a Quote

In Stock: 7,666

Specifications

18 parameters
Product StatusActive
Core ProcessorHCS12X
Core Size16-Bit
Speed50MHz
ConnectivityCANbus, EBI/EMI, I²C, IrDA, SCI, SPI
PeripheralsLVD, POR, PWM, WDT
Number of I/O152
Program Memory Size1MB (1M x 8)
Program Memory TypeFLASH
EEPROM Size4K x 8
RAM Size64K x 8
Voltage - Supply (Vcc/Vdd)1.72V ~ 5.5V
Data ConvertersA/D 32x12b
Oscillator TypeExternal
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case208-BGA
Supplier Device Package208-BGA (17x17)
