MC9S12DG256MFUE

In Stock: 8,530

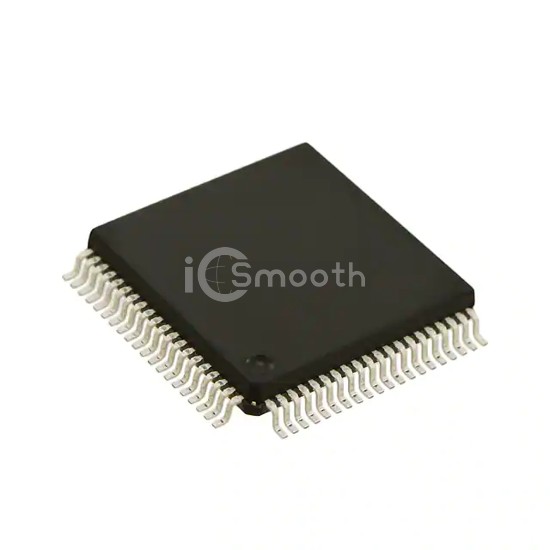

MC9S12DG256MFUE - NXP USA Inc. - Embedded - Microcontrollers
REF: MC9S12DG256MFUE NXP USA Inc.
MC9S12DG256MFUE

NXP USA Inc.

IC MCU 16BIT 256KB FLASH 80QFP

MC9S12DG256MFUE is a Embedded - Microcontrollers manufactured by NXP USA Inc.. IC MCU 16BIT 256KB FLASH 80QFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 2.35V ~ 5.25V, package / case 80-QFP.

Datasheet Request a Quote

In Stock: 8,530

Specifications

18 parameters
Product StatusActive
Core ProcessorHCS12
Core Size16-Bit
Speed25MHz
ConnectivityCANbus, I²C, SCI, SPI
PeripheralsPWM, WDT
Number of I/O59
Program Memory Size256KB (256K x 8)
Program Memory TypeFLASH
EEPROM Size4K x 8
RAM Size12K x 8
Voltage - Supply (Vcc/Vdd)2.35V ~ 5.25V
Data ConvertersA/D 16x10b
Oscillator TypeInternal
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case80-QFP
Supplier Device Package80-QFP (14x14)
