Name: MC9S12DG256BCPV
Brand: NXP USA Inc.
SKU: MC9S12DG256BCPV
Price: 17.29 USD
Availability: InStock

REF: MC9S12DG256BCPV NXP USA Inc.

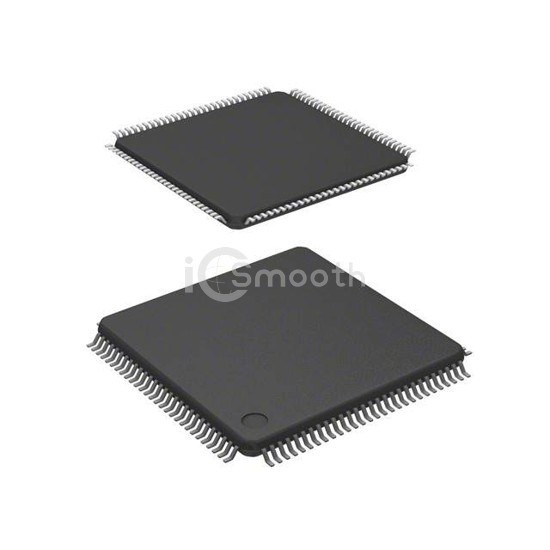

MC9S12DG256BCPV

NXP USA Inc.

IC MCU 16BIT 256KB FLASH 112LQFP

MC9S12DG256BCPV is a Embedded - Microcontrollers manufactured by NXP USA Inc.. IC MCU 16BIT 256KB FLASH 112LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.35V ~ 5.25V, package / case 112-LQFP.

Datasheet Request a Quote

In Stock: 6,144

Specifications

18 parameters

Product Status	Obsolete
Core Processor	HCS12
Core Size	16-Bit
Speed	25MHz
Connectivity	CANbus, I²C, SCI, SPI
Peripherals	PWM, WDT
Number of I/O	91
Program Memory Size	256KB (256K x 8)
Program Memory Type	FLASH

EEPROM Size	4K x 8
RAM Size	12K x 8
Voltage - Supply (Vcc/Vdd)	2.35V ~ 5.25V
Data Converters	A/D 16x10b
Oscillator Type	Internal
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	112-LQFP
Supplier Device Package	112-LQFP (20x20)
