Name: MC9S08LL16CGTR
Brand: NXP USA Inc.
SKU: MC9S08LL16CGTR
Price: 2.90 USD
Availability: InStock

REF: MC9S08LL16CGTR NXP USA Inc.

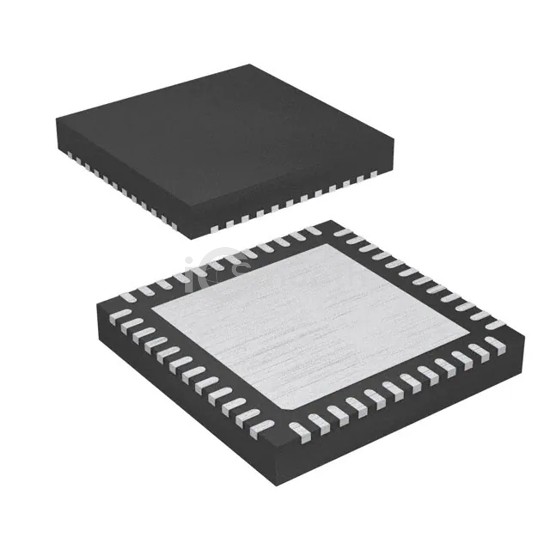

MC9S08LL16CGTR

IC MCU 8BIT 16KB FLASH 48QFN

MC9S08LL16CGTR is a Embedded - Microcontrollers manufactured by NXP USA Inc.. IC MCU 8BIT 16KB FLASH 48QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 1.8V ~ 3.6V, package / case 48-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 2,321

Specifications

18 parameters

Product Status	Active
Core Processor	S08
Core Size	8-Bit
Speed	20MHz
Connectivity	I²C, SCI, SPI
Peripherals	LCD, LVD, POR, PWM, WDT
Number of I/O	31
Program Memory Size	16KB (16K x 8)
Program Memory Type	FLASH

EEPROM Size	-
RAM Size	2K x 8
Voltage - Supply (Vcc/Vdd)	1.8V ~ 3.6V
Data Converters	A/D 8x12b
Oscillator Type	Internal
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	48-VFQFN Exposed Pad
Supplier Device Package	48-QFN-EP (7x7)
