Name: MC9S08DZ16AMLF
Brand: NXP USA Inc.
SKU: MC9S08DZ16AMLF
Price: 8.07 USD
Availability: InStock

REF: MC9S08DZ16AMLF NXP USA Inc.

MC9S08DZ16AMLF

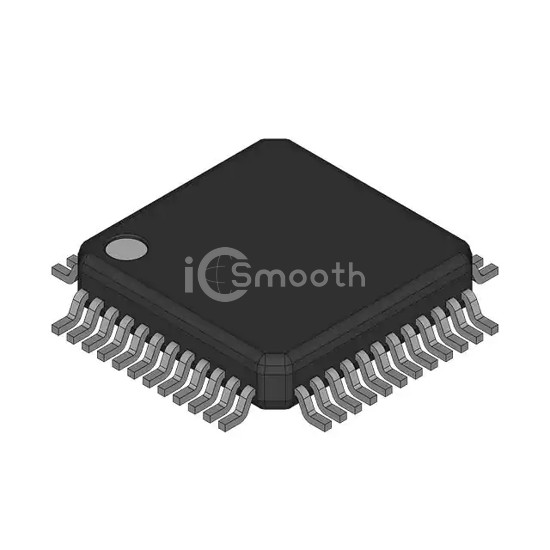

IC MCU 8BIT 16KB FLASH 48LQFP

MC9S08DZ16AMLF is a Embedded - Microcontrollers manufactured by NXP USA Inc.. IC MCU 8BIT 16KB FLASH 48LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 2.7V ~ 5.5V, package / case 48-LQFP.

Datasheet Request a Quote

In Stock: 1,106

Specifications

18 parameters

Product Status	Active
Core Processor	S08
Core Size	8-Bit
Speed	40MHz
Connectivity	CANbus, I²C, LINbus, SCI, SPI
Peripherals	LVD, POR, PWM, WDT
Number of I/O	39
Program Memory Size	16KB (16K x 8)
Program Memory Type	FLASH

EEPROM Size	512 x 8
RAM Size	1K x 8
Voltage - Supply (Vcc/Vdd)	2.7V ~ 5.5V
Data Converters	A/D 16x12b
Oscillator Type	External
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	48-LQFP
Supplier Device Package	48-LQFP (7x7)
