Name: MC9S08DN32CLH
Brand: NXP USA Inc.
SKU: MC9S08DN32CLH
Price: 3.34 USD
Availability: InStock

REF: MC9S08DN32CLH NXP USA Inc.

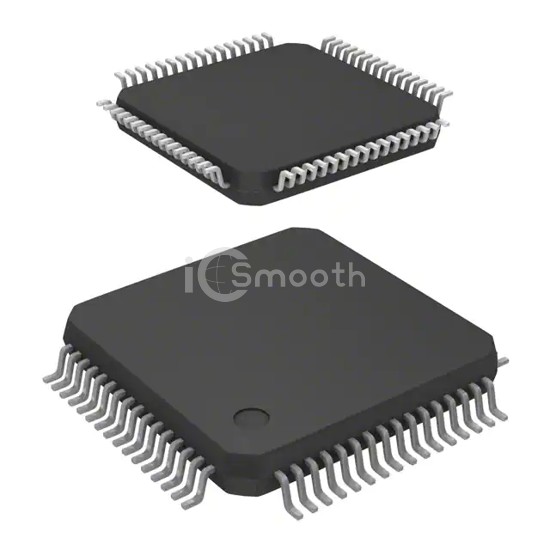

MC9S08DN32CLH

IC MCU 8BIT 32KB FLASH 64LQFP

MC9S08DN32CLH is a Embedded - Microcontrollers manufactured by NXP USA Inc.. IC MCU 8BIT 32KB FLASH 64LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.7V ~ 5.5V, package / case 64-LQFP.

Datasheet Request a Quote

In Stock: 5,757

Specifications

18 parameters

Product Status	Obsolete
Core Processor	S08
Core Size	8-Bit
Speed	40MHz
Connectivity	I²C, LINbus, SCI, SPI
Peripherals	LVD, POR, PWM, WDT
Number of I/O	53
Program Memory Size	32KB (32K x 8)
Program Memory Type	FLASH

EEPROM Size	1K x 8
RAM Size	1.5K x 8
Voltage - Supply (Vcc/Vdd)	2.7V ~ 5.5V
Data Converters	A/D 16x12b
Oscillator Type	External
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	64-LQFP
Supplier Device Package	64-LQFP (10x10)
