MC56F8165VFGE

In Stock: 6,078

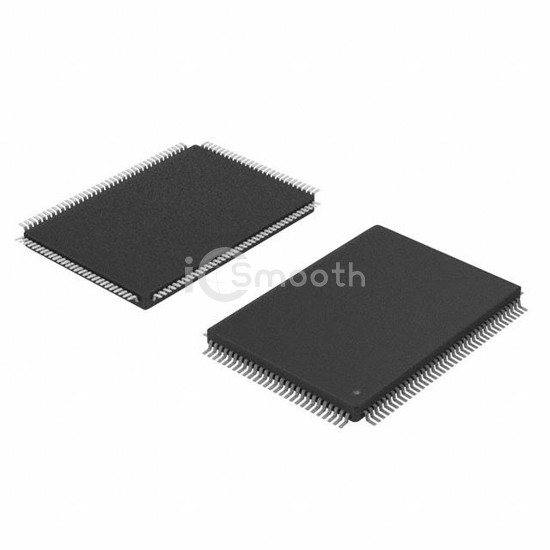

MC56F8165VFGE - NXP USA Inc. - Embedded - Microcontrollers
REF: MC56F8165VFGE NXP USA Inc.
MC56F8165VFGE

NXP USA Inc.

IC MCU 16BIT 512KB FLASH 128LQFP

MC56F8165VFGE is a Embedded - Microcontrollers manufactured by NXP USA Inc.. IC MCU 16BIT 512KB FLASH 128LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), voltage - supply (vcc/vdd) 2.25V ~ 3.6V, package / case 128-LQFP.

Datasheet Request a Quote

In Stock: 6,078

Specifications

18 parameters
Product StatusActive
Core Processor56800E
Core Size16-Bit
Speed40MHz
ConnectivityEBI/EMI, SCI, SPI
PeripheralsPOR, PWM, WDT
Number of I/O49
Program Memory Size512KB (256K x 16)
Program Memory TypeFLASH
EEPROM Size-
RAM Size16K x 16
Voltage - Supply (Vcc/Vdd)2.25V ~ 3.6V
Data ConvertersA/D 16x12b
Oscillator TypeExternal
Operating Temperature-40°C ~ 105°C (TA)
Mounting TypeSurface Mount
Package / Case128-LQFP
Supplier Device Package128-LQFP (14x20)
