Name: MC56F8135VFGE
Brand: NXP USA Inc.
SKU: MC56F8135VFGE
Price: 21.70 USD
Availability: InStock

REF: MC56F8135VFGE NXP USA Inc.

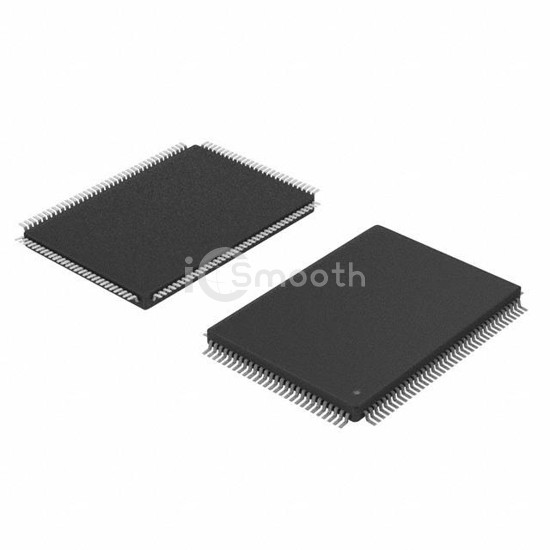

MC56F8135VFGE

IC MCU 16BIT 64KB FLASH 128LQFP

MC56F8135VFGE is a Embedded - Microcontrollers manufactured by NXP USA Inc.. IC MCU 16BIT 64KB FLASH 128LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), voltage - supply (vcc/vdd) 2.25V ~ 3.6V, package / case 128-LQFP.

Datasheet Request a Quote

In Stock: 360

Tiered Pricing USD

1+ $21.7000 —

10+ $17.4510 -20%

25+ $16.3904 -24%

100+ $15.4025 -29% BEST

Specifications

18 parameters

Product Status	Active
Core Processor	56800E
Core Size	16-Bit
Speed	40MHz
Connectivity	SCI, SPI
Peripherals	POR, PWM, WDT
Number of I/O	49
Program Memory Size	64KB (32K x 16)
Program Memory Type	FLASH

EEPROM Size	-
RAM Size	4K x 16
Voltage - Supply (Vcc/Vdd)	2.25V ~ 3.6V
Data Converters	A/D 16x12b
Oscillator Type	External
Operating Temperature	-40°C ~ 105°C (TA)
Mounting Type	Surface Mount
Package / Case	128-LQFP
Supplier Device Package	128-LQFP (14x20)
