Name: MC33HB2001EK
Brand: NXP USA Inc.
SKU: MC33HB2001EK
Price: 8.63 USD
Availability: InStock

REF: MC33HB2001EK NXP USA Inc.

MC33HB2001EK

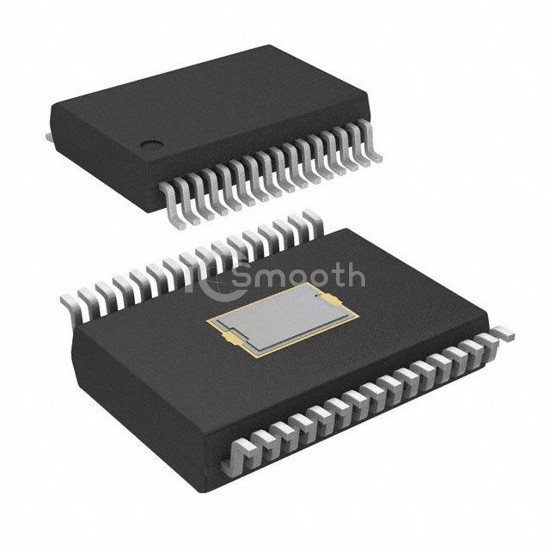

IC HALF-BRIDGE DRIVER SPI 32SOIC

MC33HB2001EK is a PMIC - Full, Half-Bridge Drivers manufactured by NXP USA Inc.. IC HALF-BRIDGE DRIVER SPI 32SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 5V ~ 28V, package / case 32-SSOP (0.295", 7.50mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 1,038

Tiered Pricing USD

1+ $8.6300 —

10+ $6.6980 -22%

42+ $5.9926 -31%

126+ $5.6152 -35%

252+ $5.4306 -37%

504+ $5.2785 -39%

1,008+ $5.1534 -40% BEST

Specifications

17 parameters

Product Status	Active
Output Configuration	Half Bridge (2)
Applications	DC Motors, General Purpose
Interface	SPI
Load Type	Inductive
Technology	Power MOSFET
Rds On (Typ)	125mOhm LS (Max), 125mOhm HS (Max)
Current - Output / Channel	-
Current - Peak Output	-

Voltage - Supply	5V ~ 28V
Voltage - Load	5V ~ 28V
Operating Temperature	-40°C ~ 150°C (TJ)
Features	Slew Rate Controlled
Fault Protection	Over Temperature, Over Voltage, UVLO
Mounting Type	Surface Mount
Package / Case	32-SSOP (0.295", 7.50mm Width) Exposed Pad
Supplier Device Package	32-SOIC-EP
