MC33696FJAER2

In Stock: 1,630

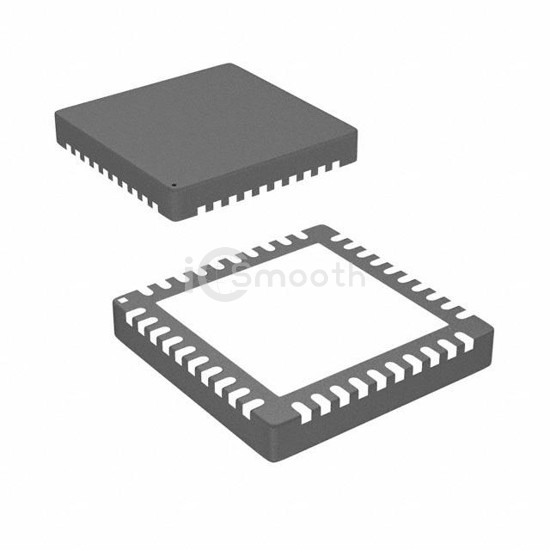

MC33696FJAER2 - NXP USA Inc. - RF Transceiver ICs
REF: MC33696FJAER2 NXP USA Inc.
MC33696FJAER2

NXP USA Inc.

IC RF TXRX ISM<1GHZ 32VFQFN

MC33696FJAER2 is a RF Transceiver ICs manufactured by NXP USA Inc.. IC RF TXRX ISM<1GHZ 32VFQFN. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 85°C, voltage - supply 2.1V ~ 3.6V, package / case 32-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,630

Specifications

19 parameters
Product StatusObsolete
TypeTxRx Only
RF Family/StandardGeneral ISM < 1GHz
Protocol-
ModulationFSK, OOK
Frequency290MHz ~ 340MHz, 424MHz ~ 510MHz, 862MHz ~ 1.02GHz
Data Rate (Max)22.6kbps
Power - Output7.25dBm
Sensitivity-106.5dBm
Memory Size-
Serial InterfacesSPI
GPIO-
Voltage - Supply2.1V ~ 3.6V
Current - Receiving10.3mA ~ 24mA
Current - Transmitting6.1mA ~ 13.5mA
Operating Temperature-20°C ~ 85°C
Mounting TypeSurface Mount
Package / Case32-VFQFN Exposed Pad
Supplier Device Package32-QFN-EP (5x5)
