MC13237CHTR

In Stock: 9,115

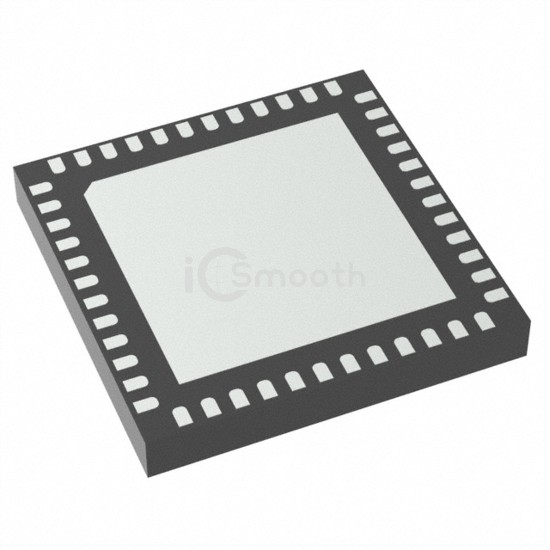

MC13237CHTR - NXP USA Inc. - RF Transceiver ICs
REF: MC13237CHTR NXP USA Inc.
MC13237CHTR

NXP USA Inc.

IC RF TXRX+MCU 802.15.4 48VFLGA

MC13237CHTR is a RF Transceiver ICs manufactured by NXP USA Inc.. IC RF TXRX+MCU 802.15.4 48VFLGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.8V ~ 3.6V, package / case 48-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 9,115

Specifications

19 parameters
Product StatusNot For New Designs
TypeTxRx + MCU
RF Family/Standard802.15.4
ProtocolZigbee®
ModulationO-QPSK
Frequency2.4GHz
Data Rate (Max)250kbps
Power - Output2dBm
Sensitivity-93dBm
Memory Size128kB Flash, 8kB RAM
Serial InterfacesI²C, SPI, UART
GPIO28
Voltage - Supply1.8V ~ 3.6V
Current - Receiving26.8mA ~ 35mA
Current - Transmitting21.3mA ~ 28.2mA
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case48-VFQFN Exposed Pad
Supplier Device Package48-MAPLGA (7x7)
