MC13224V

In Stock: 8,079

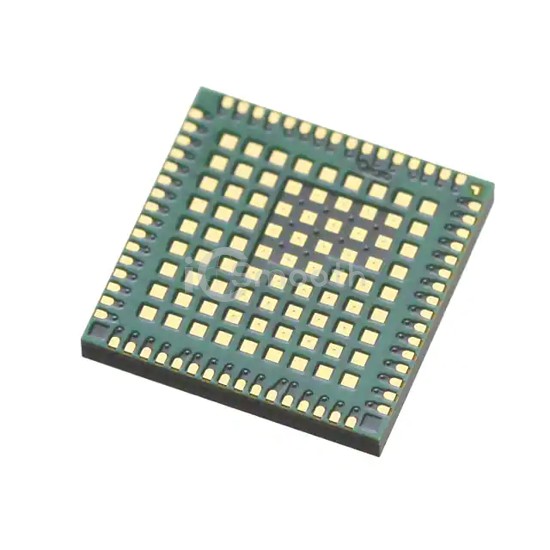

MC13224V - NXP USA Inc. - RF Transceiver ICs
REF: MC13224V NXP USA Inc.
MC13224V

NXP USA Inc.

IC RF TXRX+MCU 802.15.4 145TFLGA

MC13224V is a RF Transceiver ICs manufactured by NXP USA Inc.. IC RF TXRX+MCU 802.15.4 145TFLGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - supply 2V ~ 3.6V, package / case 145-TFLGA.

Datasheet Request a Quote

In Stock: 8,079

Specifications

19 parameters
Product StatusObsolete
TypeTxRx + MCU
RF Family/Standard802.15.4
ProtocolZigbee®
ModulationO-QPSK
Frequency2.4GHz
Data Rate (Max)250kbps
Power - Output4dBm
Sensitivity-100dBm
Memory Size128kB Flash, 80kB ROM, 96kB SRAM
Serial InterfacesI²C, I²S, JTAG, SPI, UART
GPIO64
Voltage - Supply2V ~ 3.6V
Current - Receiving22mA ~ 24mA
Current - Transmitting29mA
Operating Temperature-40°C ~ 105°C
Mounting TypeSurface Mount
Package / Case145-TFLGA
Supplier Device Package145-TLGA (9.5x9.5)
