Name: LPC804M101JDH20FP
Brand: NXP USA Inc.
SKU: LPC804M101JDH20FP
Price: 1.19 USD
Availability: InStock

REF: LPC804M101JDH20FP NXP USA Inc.

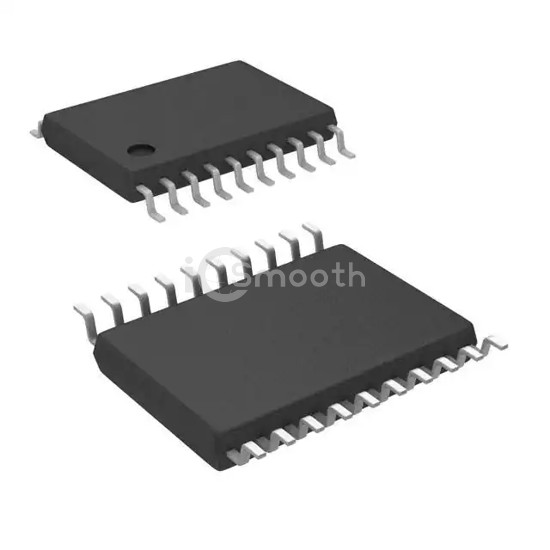

LPC804M101JDH20FP

NXP USA Inc.

IC MCU 32BIT 32KB FLASH 20TSSOP

LPC804M101JDH20FP is a Embedded - Microcontrollers manufactured by NXP USA Inc.. IC MCU 32BIT 32KB FLASH 20TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), voltage - supply (vcc/vdd) 1.71V ~ 3.6V, package / case 20-TSSOP (0.173", 4.40mm Width).

Datasheet Request a Quote

In Stock: 9,599

Tiered Pricing USD

1+ $1.1900 —

10+ $1.0000 -16%

75+ $0.9137 -23%

150+ $0.8633 -27%

300+ $0.8128 -32%

525+ $0.8079 -32% BEST

Specifications

18 parameters

Product Status	Active
Core Processor	ARM® Cortex®-M0+
Core Size	32-Bit Single-Core
Speed	15MHz
Connectivity	I²C, SPI, UART/USART
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O	17
Program Memory Size	32KB (32K x 8)
Program Memory Type	FLASH

EEPROM Size	-
RAM Size	4K x 8
Voltage - Supply (Vcc/Vdd)	1.71V ~ 3.6V
Data Converters	A/D 12x12b
Oscillator Type	Internal
Operating Temperature	-40°C ~ 105°C (TA)
Mounting Type	Surface Mount
Package / Case	20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package	20-TSSOP
