Name: LPC5536JBD64E
Brand: NXP USA Inc.
SKU: LPC5536JBD64E
Price: 8.04 USD
Availability: InStock

REF: LPC5536JBD64E NXP USA Inc.

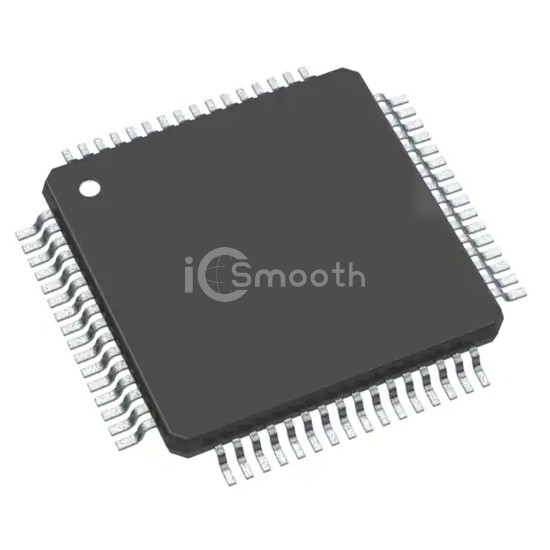

LPC5536JBD64E

IC MCU M33 256KB/128KB HTQFP64

LPC5536JBD64E is a Embedded - Microcontrollers manufactured by NXP USA Inc.. IC MCU M33 256KB/128KB HTQFP64. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), voltage - supply (vcc/vdd) 1.8V ~ 3.6V, package / case 64-TQFP Exposed Pad.

Datasheet Request a Quote

In Stock: 1,756

Tiered Pricing USD

1+ $8.0400 —

10+ $5.8510 -27%

25+ $5.5636 -31%

160+ $4.6283 -42%

320+ $4.4896 -44%

640+ $4.4352 -45% BEST

Specifications

18 parameters

Product Status	Active
Core Processor	ARM® Cortex®-M33
Core Size	32-Bit Single-Core
Speed	150MHz
Connectivity	CANbus, Flexcomm, I²C, I²S, I³C, SPI, UART/USART
Peripherals	DMA, PWM, WDT
Number of I/O	39
Program Memory Size	256KB (256K x 8)
Program Memory Type	FLASH

EEPROM Size	-
RAM Size	128K x 8
Voltage - Supply (Vcc/Vdd)	1.8V ~ 3.6V
Data Converters	A/D 13x16b; D/A 1x12b
Oscillator Type	Internal
Operating Temperature	-40°C ~ 105°C (TA)
Mounting Type	Surface Mount
Package / Case	64-TQFP Exposed Pad
Supplier Device Package	64-HTQFP (10x10)
