Name: LPC5536JBD100K
Brand: NXP USA Inc.
SKU: LPC5536JBD100K
Price: 10.01 USD
Availability: InStock

REF: LPC5536JBD100K NXP USA Inc.

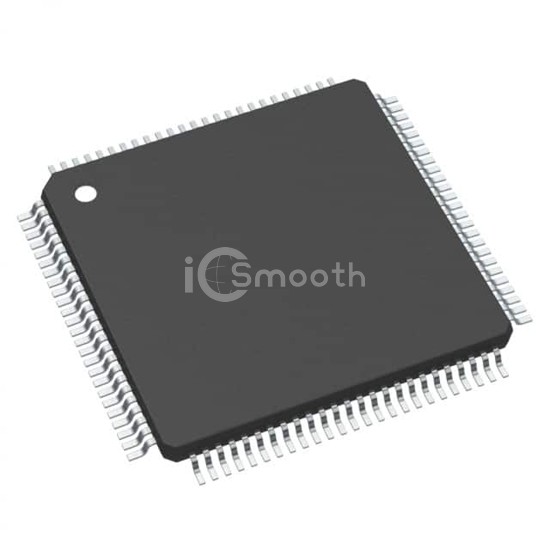

LPC5536JBD100K

IC MCU M33 256KB/128KB HLQFP100

LPC5536JBD100K is a Embedded - Microcontrollers manufactured by NXP USA Inc.. IC MCU M33 256KB/128KB HLQFP100. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), voltage - supply (vcc/vdd) 1.8V ~ 3.6V, package / case 100-LQFP.

Datasheet Request a Quote

In Stock: 8,942

Tiered Pricing USD

1+ $10.0100 —

10+ $7.8110 -22%

25+ $7.2664 -27%

100+ $6.6330 -34%

450+ $5.6133 -44%

900+ $5.5775 -44% BEST

Specifications

18 parameters

Product Status	Active
Core Processor	ARM® Cortex®-M33
Core Size	32-Bit Single-Core
Speed	150MHz
Connectivity	CANbus, Flexcomm, I²C, I²S, I³C, SPI, UART/USART, USB2.0
Peripherals	DMA, PWM, WDT
Number of I/O	66
Program Memory Size	256KB (256K x 8)
Program Memory Type	FLASH

EEPROM Size	-
RAM Size	128K x 8
Voltage - Supply (Vcc/Vdd)	1.8V ~ 3.6V
Data Converters	A/D 23x16b; D/A 2x12b
Oscillator Type	Internal
Operating Temperature	-40°C ~ 105°C (TA)
Mounting Type	Surface Mount
Package / Case	100-LQFP
Supplier Device Package	100-HLQFP (14x14)
