Name: LPC5536JBD100E
Brand: NXP USA Inc.
SKU: LPC5536JBD100E
Price: 8.26 USD
Availability: InStock

REF: LPC5536JBD100E NXP USA Inc.

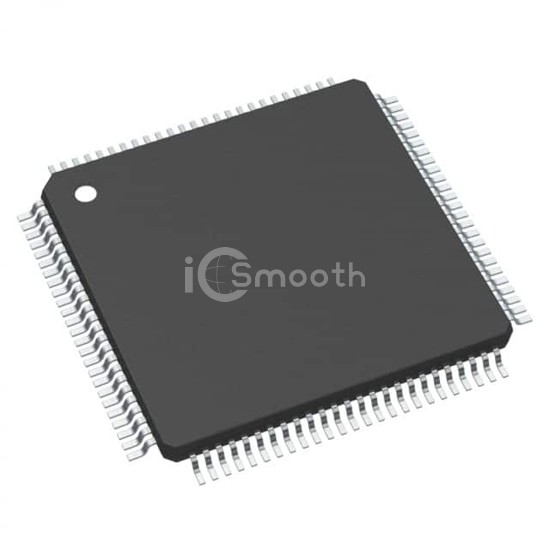

LPC5536JBD100E

IC MCU M33 256KB/128KB HLQFP100

LPC5536JBD100E is a Embedded - Microcontrollers manufactured by NXP USA Inc.. IC MCU M33 256KB/128KB HLQFP100. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), voltage - supply (vcc/vdd) 1.8V ~ 3.6V, package / case 100-LQFP.

Datasheet Request a Quote

In Stock: 3,569

Tiered Pricing USD

1+ $8.2600 —

10+ $5.8810 -29%

90+ $4.9004 -41%

180+ $4.8213 -42% BEST

Specifications

18 parameters

Product Status	Active
Core Processor	ARM® Cortex®-M33
Core Size	32-Bit Single-Core
Speed	150MHz
Connectivity	CANbus, Flexcomm, I²C, I²S, I³C, SPI, UART/USART, USB2.0
Peripherals	DMA, PWM, WDT
Number of I/O	66
Program Memory Size	256KB (256K x 8)
Program Memory Type	FLASH

EEPROM Size	-
RAM Size	128K x 8
Voltage - Supply (Vcc/Vdd)	1.8V ~ 3.6V
Data Converters	A/D 23x16b; D/A 2x12b
Oscillator Type	Internal
Operating Temperature	-40°C ~ 105°C (TA)
Mounting Type	Surface Mount
Package / Case	100-LQFP
Supplier Device Package	100-HLQFP (14x14)
