Name: LD6938CX6/18125PLJ
Brand: NXP USA Inc.
SKU: LD6938CX6/18125PLJ
Price: 0.12 USD
Availability: InStock

REF: LD6938CX6/18125PLJ NXP USA Inc.

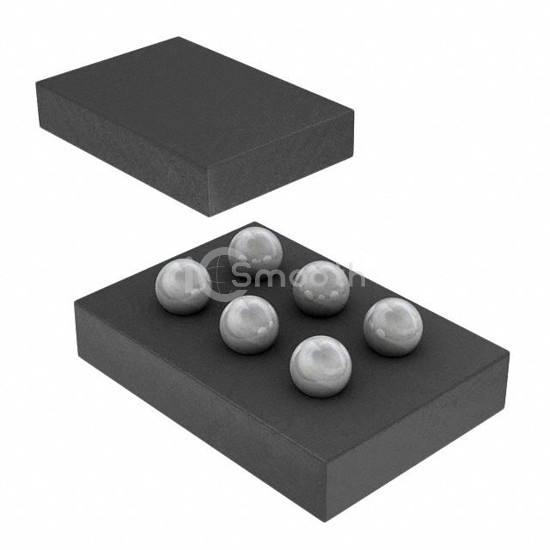

LD6938CX6/18125PLJ

NXP USA Inc.

IC REG LINEAR 1.25V/1.8V 6WLCSP

LD6938CX6/18125PLJ is a PMIC - Voltage Regulators - Linear manufactured by NXP USA Inc.. IC REG LINEAR 1.25V/1.8V 6WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 6-XFBGA, WLCSP, current - output 300mA, 300mA.

Datasheet Request a Quote

In Stock: 5,371

Tiered Pricing USD

4,500+ $0.1234 —

9,000+ $0.1201 -3%

13,500+ $0.1184 -4%

22,500+ $0.1166 -6%

31,500+ $0.1155 -6%

45,000+ $0.1145 -7% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	2
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.25V, 1.8V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.4V @ 300mA, 0.4V @ 300mA
Current - Output	300mA, 300mA

Current - Quiescent (Iq)	75 µA
Current - Supply (Max)	-
PSRR	80dB (1kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Soft Start
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	6-XFBGA, WLCSP
Supplier Device Package	6-WLCSP (1.2x0.80)
