Name: LD6938CX6/1215PLJ
Brand: NXP USA Inc.
SKU: LD6938CX6/1215PLJ
Availability: InStock

REF: LD6938CX6/1215PLJ NXP USA Inc.

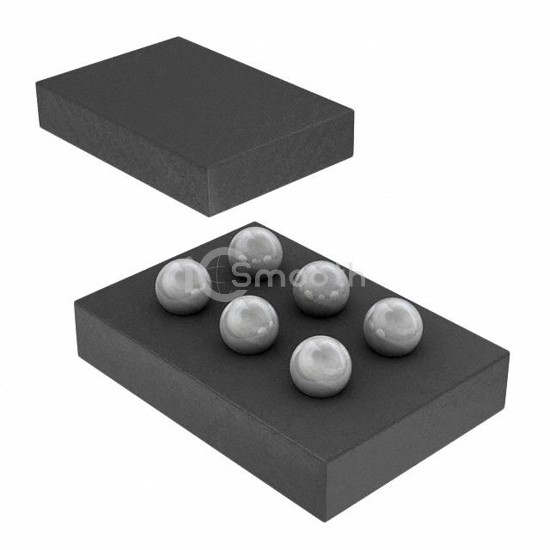

LD6938CX6/1215PLJ

IC REG LINEAR 1.2V/1.5V 6WLCSP

LD6938CX6/1215PLJ is a PMIC - Voltage Regulators - Linear manufactured by NXP USA Inc.. IC REG LINEAR 1.2V/1.5V 6WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 6-XFBGA, WLCSP, current - output 300mA, 300mA.

Datasheet Request a Quote

In Stock: 7,404

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	2
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.2V, 1.5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.4V @ 300mA, 0.4V @ 300mA
Current - Output	300mA, 300mA

Current - Quiescent (Iq)	75 µA
Current - Supply (Max)	-
PSRR	80dB (1kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Soft Start
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	6-XFBGA, WLCSP
Supplier Device Package	6-WLCSP (1.2x0.80)
