LD6806CX4/21HYL

In Stock: 8,792

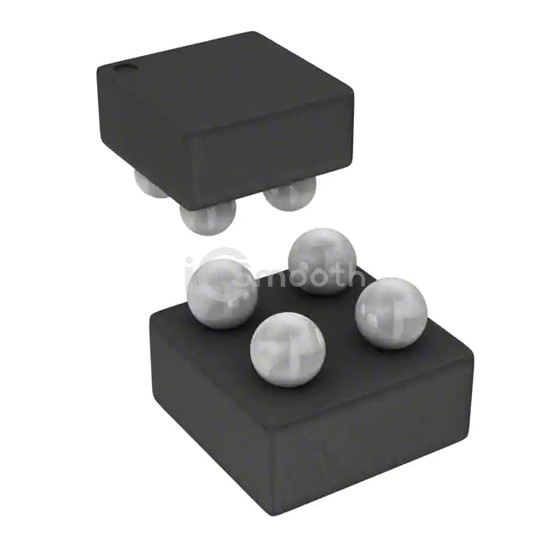

LD6806CX4/21HYL - NXP USA Inc. - PMIC - Voltage Regulators - Linear
REF: LD6806CX4/21HYL NXP USA Inc.
LD6806CX4/21HYL

NXP USA Inc.

IC REG LINEAR 2.1V 200MA UNCASED

LD6806CX4/21HYL is a PMIC - Voltage Regulators - Linear manufactured by NXP USA Inc.. IC REG LINEAR 2.1V 200MA UNCASED. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 4-XFBGA, current - supply (max) 250 µA.

Datasheet Request a Quote

In Stock: 8,792

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)5.5V
Voltage - Output (Min/Fixed)2.1V
Voltage - Output (Max)-
Voltage Dropout (Max)0.1V @ 200mA
Current - Output200mA
Current - Quiescent (Iq)100 µA
Current - Supply (Max)250 µA
PSRR55dB (1kHz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case4-XFBGA
Supplier Device Package-
