LD6805K/21HX

In Stock: 9,430

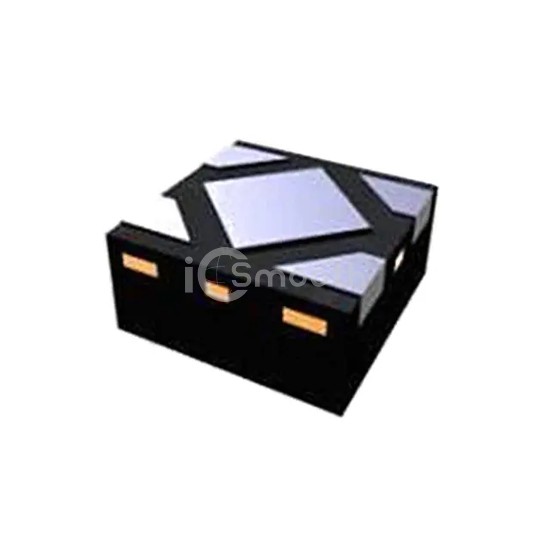

LD6805K/21HX - NXP USA Inc. - PMIC - Voltage Regulators - Linear
REF: LD6805K/21HX NXP USA Inc.
LD6805K/21HX

NXP USA Inc.

IC REG LIN 2.1V 150MA DFN1010C-4

LD6805K/21HX is a PMIC - Voltage Regulators - Linear manufactured by NXP USA Inc.. IC REG LIN 2.1V 150MA DFN1010C-4. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 4-UDFN Exposed Pad, current - supply (max) 150 µA.

Datasheet Request a Quote

In Stock: 9,430

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)5.5V
Voltage - Output (Min/Fixed)2.1V
Voltage - Output (Max)-
Voltage Dropout (Max)0.25V @ 150mA
Current - Output150mA
Current - Quiescent (Iq)35 µA
Current - Supply (Max)150 µA
PSRR75dB (1kHz)
Control FeaturesEnable
Protection FeaturesOver Current, Transient Voltage
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case4-UDFN Exposed Pad
Supplier Device PackageDFN1010C-4
