JN5148/001,531

In Stock: 4,444

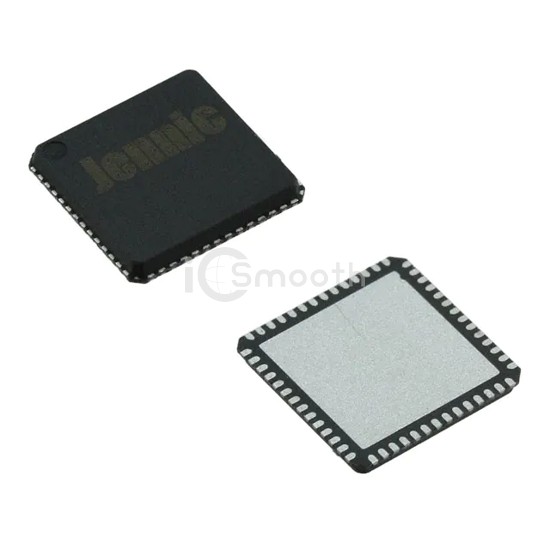

JN5148/001,531 - NXP USA Inc. - RF Transceiver ICs
REF: JN5148/001,531 NXP USA Inc.
JN5148/001,531

NXP USA Inc.

IC RF TXRX+MCU 802.15.4 56VFQFN

JN5148/001,531 is a RF Transceiver ICs manufactured by NXP USA Inc.. IC RF TXRX+MCU 802.15.4 56VFQFN. Key specifications: operating temperature -40°C ~ 85°C, voltage - supply 2V ~ 3.6V, package / case 56-VFQFN, power - output 2.75dBm.

Datasheet Request a Quote

In Stock: 4,444

Tiered Pricing USD
500+ $4.3569 —
1,000+ $4.1530 -5%
1,500+ $4.0460 -7%
2,500+ $3.9229 -10% BEST

Specifications

19 parameters
Product StatusObsolete
TypeTxRx + MCU
RF Family/Standard802.15.4
ProtocolZigbee®
ModulationO-QPSK
Frequency2.4GHz
Data Rate (Max)667kbps
Power - Output2.75dBm
Sensitivity-96.5dBm
Memory Size128kB ROM, 128kB RAM
Serial InterfacesI²C, JTAG, SPI, UART
GPIO21
Voltage - Supply2V ~ 3.6V
Current - Receiving17.5mA
Current - Transmitting15mA
Operating Temperature-40°C ~ 85°C
Mounting Type-
Package / Case56-VFQFN
Supplier Device Package-
