JN5139/001,515

In Stock: 3,824

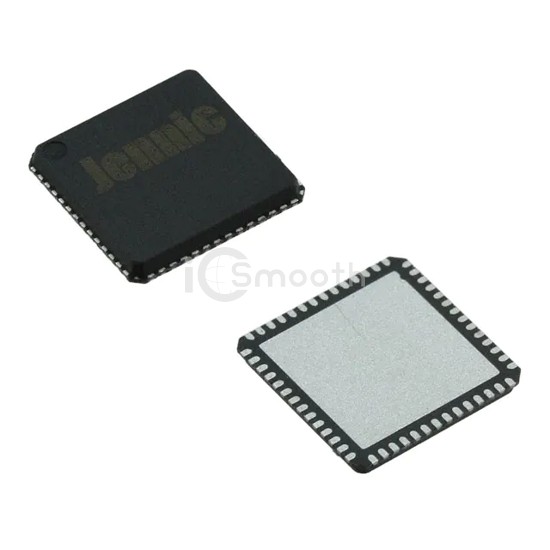

JN5139/001,515 - NXP USA Inc. - RF Transceiver ICs
REF: JN5139/001,515 NXP USA Inc.
JN5139/001,515

NXP USA Inc.

IC RF TXRX+MCU 802.15.4 56VFQFN

JN5139/001,515 is a RF Transceiver ICs manufactured by NXP USA Inc.. IC RF TXRX+MCU 802.15.4 56VFQFN. Key specifications: operating temperature -40°C ~ 85°C, voltage - supply 2.2V ~ 3.6V, package / case 56-VFQFN Exposed Pad, power - output 3dBm.

Datasheet Request a Quote

In Stock: 3,824

Specifications

19 parameters
Product StatusObsolete
TypeTxRx + MCU
RF Family/Standard802.15.4
ProtocolZigbee®
Modulation-
Frequency2.4GHz
Data Rate (Max)1Mbps
Power - Output3dBm
Sensitivity-97dBm
Memory Size192kB ROM, 96kB RAM
Serial InterfacesSPI, UART
GPIO21
Voltage - Supply2.2V ~ 3.6V
Current - Receiving37mA
Current - Transmitting38mA
Operating Temperature-40°C ~ 85°C
Mounting Type-
Package / Case56-VFQFN Exposed Pad
Supplier Device Package-
