CBTL02042BBQ,115

In Stock: 1,590

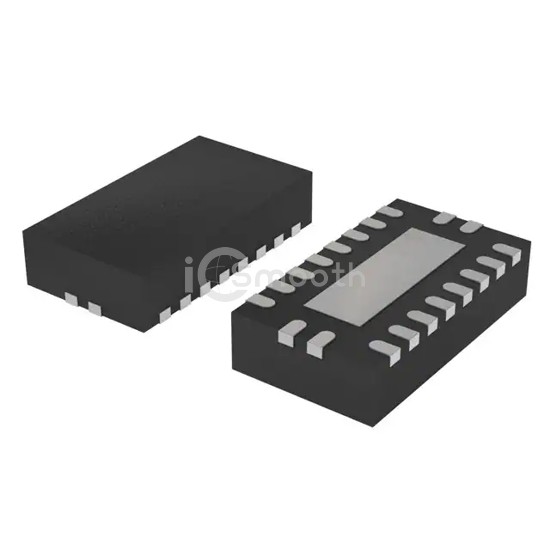

CBTL02042BBQ,115 - NXP USA Inc. - Interface - Analog Switches - Special Purpose
REF: CBTL02042BBQ,115 NXP USA Inc.
CBTL02042BBQ,115

NXP USA Inc.

IC MUX/DEMUX 2:1 PCI 20DHVQFN

CBTL02042BBQ,115 is a Interface - Analog Switches - Special Purpose manufactured by NXP USA Inc.. IC MUX/DEMUX 2:1 PCI 20DHVQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 20-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,590

Specifications

14 parameters
Product StatusObsolete
ApplicationsDisplayPort, PCIe, USB
Multiplexer/Demultiplexer Circuit2:1
Switch Circuit-
Number of Channels2
On-State Resistance (Max)6Ohm (Typ)
Voltage - Supply, Single (V+)3V ~ 3.6V
Voltage - Supply, Dual (V±)-
-3db Bandwidth7GHz
FeaturesBi-Directional, SATA
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case20-VFQFN Exposed Pad
Supplier Device Package20-DHVQFN (4.5x2.5)
