RECTIFIER DIODE

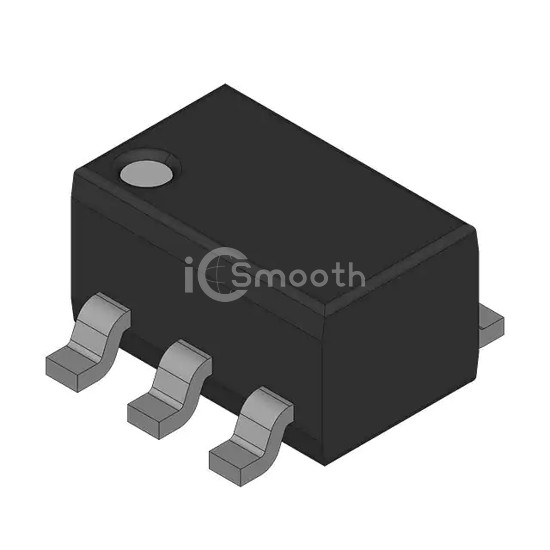

BAV70S/DG/B3135 is a Diodes - Rectifiers - Arrays manufactured by NXP USA Inc.. RECTIFIER DIODE. Key specifications: mounting type Surface Mount, package / case 6-TSSOP, SC-88, SOT-363.
In Stock: 10,000
| Product Status | Active |
|---|---|
| Diode Configuration | 2 Pair Common Cathode |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) (per Diode) | 250mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 4 ns |
|---|---|
| Current - Reverse Leakage @ Vr | 500 nA @ 80 V |
| Operating Temperature - Junction | 150°C (Max) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | 6-TSSOP |
