RECTIFIER DIODE, SCHOTTKY

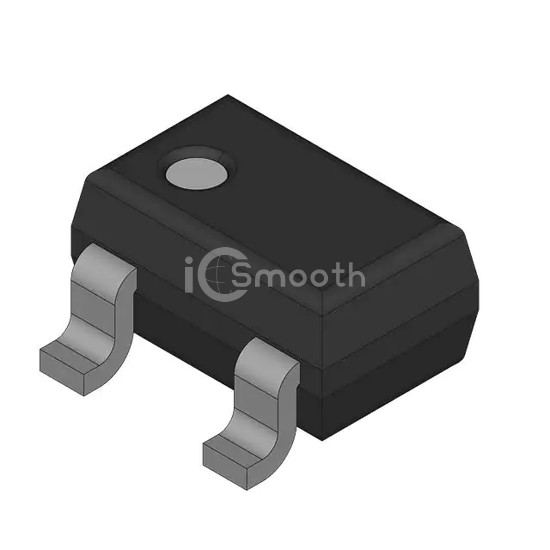

BAT54CW/6115 is a Diodes - Rectifiers - Arrays manufactured by NXP USA Inc.. RECTIFIER DIODE, SCHOTTKY. Key specifications: mounting type Surface Mount, package / case SC-70, SOT-323.
In Stock: 429,000
| Product Status | Active |
|---|---|
| Diode Configuration | 1 Pair Common Cathode |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) (per Diode) | 200mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 800 mV @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 5 ns |
|---|---|
| Current - Reverse Leakage @ Vr | 2 µA @ 25 V |
| Operating Temperature - Junction | 150°C (Max) |
| Mounting Type | Surface Mount |
| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | SOT-323 |
