BAP55LX,315

In Stock: 30,471

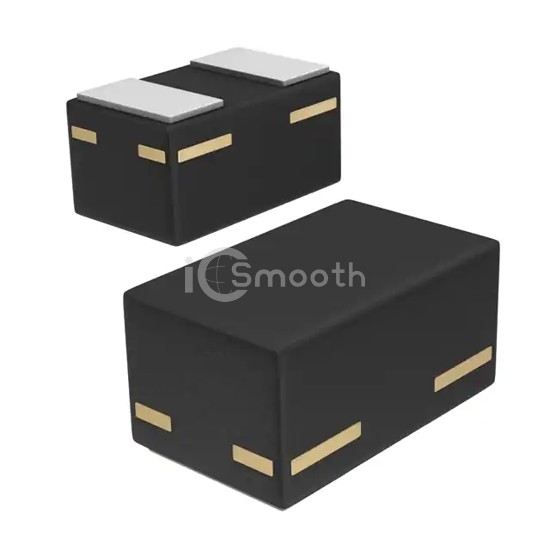

BAP55LX,315 - NXP USA Inc. - Diodes - RF
REF: BAP55LX,315 NXP USA Inc.
BAP55LX,315

NXP USA Inc.

RF DIODE PIN 50V 135MW 2DFN

BAP55LX,315 is a Diodes - RF manufactured by NXP USA Inc.. RF DIODE PIN 50V 135MW 2DFN. Key specifications: operating temperature -65°C ~ 150°C (TJ), package / case 2-XDFN, current - max 100 mA.

Datasheet Request a Quote

In Stock: 30,471

Tiered Pricing USD
1+ $0.3300 —
10+ $0.2300 -30%
25+ $0.2044 -38%
100+ $0.1760 -47%
250+ $0.1625 -51%
500+ $0.1544 -53%
1,000+ $0.1477 -55%
2,500+ $0.1406 -57%
5,000+ $0.1363 -59% BEST

Specifications

10 parameters
Product StatusActive
Diode TypePIN - Single
Voltage - Peak Reverse (Max)50V
Current - Max100 mA
Capacitance @ Vr, F0.28pF @ 20V, 1MHz
Resistance @ If, F800mOhm @ 100mA, 100MHz
Power Dissipation (Max)135 mW
Operating Temperature-65°C ~ 150°C (TJ)
Package / Case2-XDFN
Supplier Device PackageDFN1006D-2
