BAP1321-02,115

In Stock: 42,773

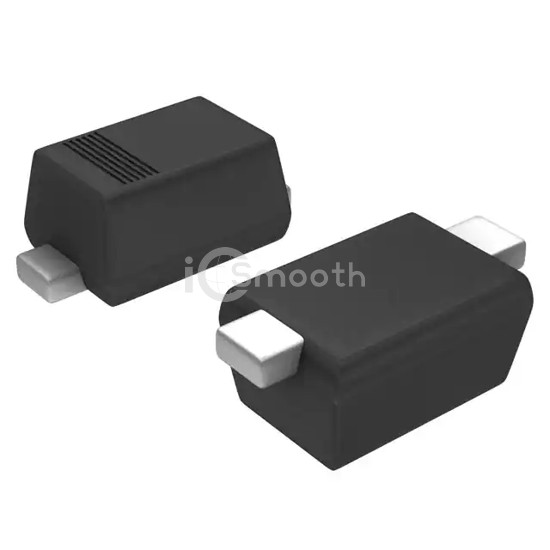

BAP1321-02,115 - NXP USA Inc. - Diodes - RF
REF: BAP1321-02,115 NXP USA Inc.
BAP1321-02,115

NXP USA Inc.

RF DIODE PIN 60V 715MW SOD523

BAP1321-02,115 is a Diodes - RF manufactured by NXP USA Inc.. RF DIODE PIN 60V 715MW SOD523. Key specifications: operating temperature -65°C ~ 150°C (TJ), package / case SC-79, SOD-523, current - max 100 mA.

Datasheet Request a Quote

In Stock: 42,773

Specifications

10 parameters
Product StatusObsolete
Diode TypePIN - Single
Voltage - Peak Reverse (Max)60V
Current - Max100 mA
Capacitance @ Vr, F0.32pF @ 20V, 1MHz
Resistance @ If, F1.3Ohm @ 100mA, 100MHz
Power Dissipation (Max)715 mW
Operating Temperature-65°C ~ 150°C (TJ)
Package / CaseSC-79, SOD-523
Supplier Device PackageSOD-523
