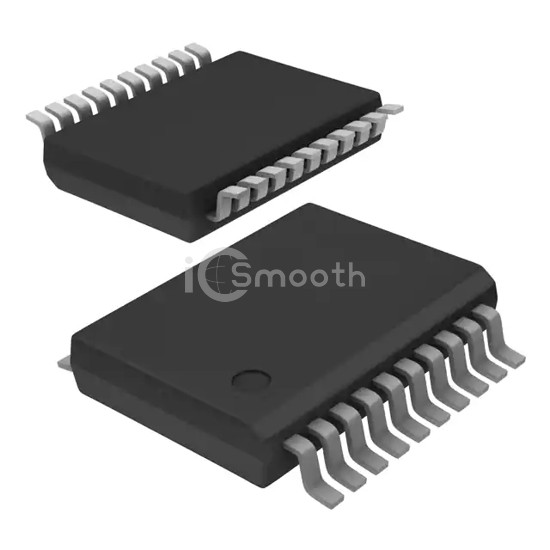

Name: 74LVT534DB,118
Brand: NXP USA Inc.
SKU: 74LVT534DB,118
Price: 1.07 USD
Availability: InStock

REF: 74LVT534DB,118 NXP USA Inc.

74LVT534DB,118

IC FF D-TYPE SNGL 8BIT 20SSOP

74LVT534DB,118 is a Logic - Flip Flops manufactured by NXP USA Inc.. IC FF D-TYPE SNGL 8BIT 20SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 2.7V ~ 3.6V, package / case 20-SSOP (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 1,930

Tiered Pricing USD

1,000+ $1.0669 —

2,000+ $1.0385 -3%

3,000+ $1.0243 -4%

5,000+ $1.0086 -5%

7,000+ $0.9994 -6%

10,000+ $0.9905 -7% BEST

Specifications

17 parameters

Product Status	Obsolete
Function	Standard
Type	D-Type
Output Type	Tri-State, Inverted
Number of Elements	1
Number of Bits per Element	8
Clock Frequency	150 MHz
Max Propagation Delay @ V, Max CL	4.9ns @ 3.3V, 50pF
Trigger Type	Positive Edge

Current - Output High, Low	32mA, 64mA
Voltage - Supply	2.7V ~ 3.6V
Current - Quiescent (Iq)	190 µA
Input Capacitance	4 pF
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	20-SSOP
Package / Case	20-SSOP (0.209", 5.30mm Width)
