74LVT14BQ,115

In Stock: 4,073
74LVT14BQ,115 - NXP USA Inc. - Logic - Gates and Inverters
REF: 74LVT14BQ,115 NXP USA Inc.
74LVT14BQ,115

NXP USA Inc.

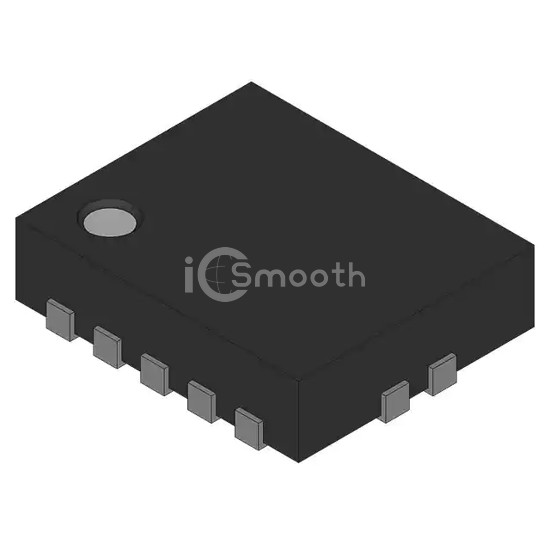

IC INVERTER 6CH 1-INP 14DHVQFN

74LVT14BQ,115 is a Logic - Gates and Inverters manufactured by NXP USA Inc.. IC INVERTER 6CH 1-INP 14DHVQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2.7V ~ 3.6V, package / case 14-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 4,073

Specifications

15 parameters
Product StatusActive
Logic TypeInverter
Number of Circuits6
Number of Inputs1
FeaturesSchmitt Trigger
Voltage - Supply2.7V ~ 3.6V
Current - Quiescent (Max)-
Current - Output High, Low20mA, 32mA
Logic Level - Low0.8V
Logic Level - High2V
Max Propagation Delay @ V, Max CL3.8ns @ 3.3V, 50pF
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device Package14-DHVQFN (2.5x3)
Package / Case14-VFQFN Exposed Pad
