74LVC2G00GN,115

In Stock: 74,800

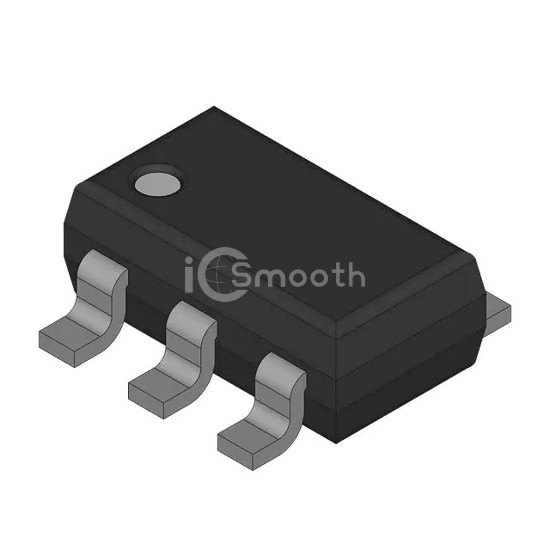

74LVC2G00GN,115 - NXP USA Inc. - Logic - Gates and Inverters
REF: 74LVC2G00GN,115 NXP USA Inc.
74LVC2G00GN,115

NXP USA Inc.

IC GATE NAND 2CH 2-INP 8XSON

74LVC2G00GN,115 is a Logic - Gates and Inverters manufactured by NXP USA Inc.. IC GATE NAND 2CH 2-INP 8XSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 8-XFDFN.

Datasheet Request a Quote

In Stock: 74,800

Tiered Pricing USD
1+ $0.5300 —
10+ $0.3690 -30%
25+ $0.3304 -38%
100+ $0.2873 -46%
250+ $0.2668 -50%
500+ $0.2544 -52%
1,000+ $0.2469 -53% BEST

Specifications

15 parameters
Product StatusActive
Logic TypeNAND Gate
Number of Circuits2
Number of Inputs2
Features-
Voltage - Supply1.65V ~ 5.5V
Current - Quiescent (Max)4 µA
Current - Output High, Low32mA, 32mA
Logic Level - Low0.7V ~ 0.8V
Logic Level - High1.7V ~ 2V
Max Propagation Delay @ V, Max CL3.3ns @ 5V, 50pF
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package8-XSON (1.2x1)
Package / Case8-XFDFN
