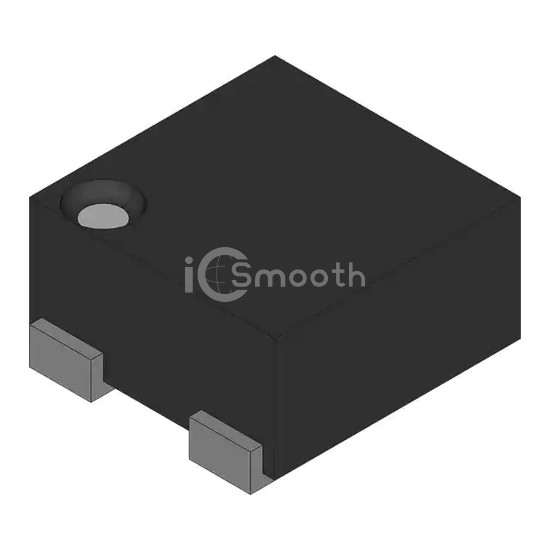

Name: 74LVC1G38GX,125
Brand: NXP USA Inc.
SKU: 74LVC1G38GX,125
Price: 0.22 USD
Availability: InStock

REF: 74LVC1G38GX,125 NXP USA Inc.

74LVC1G38GX,125

NXP USA Inc.

IC GATE NAND OD 1CH 2-INP 5X2SON

74LVC1G38GX,125 is a Logic - Gates and Inverters manufactured by NXP USA Inc.. IC GATE NAND OD 1CH 2-INP 5X2SON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 4-XFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 60,000

Tiered Pricing USD

1+ $0.2200 —

10+ $0.1500 -32%

25+ $0.1324 -40%

100+ $0.1130 -49%

250+ $0.1038 -53%

500+ $0.0982 -55%

1,000+ $0.0936 -57%

2,500+ $0.0907 -59% BEST

Specifications

15 parameters

Product Status	Active
Logic Type	NAND Gate
Number of Circuits	1
Number of Inputs	2
Features	Open Drain
Voltage - Supply	1.65V ~ 5.5V
Current - Quiescent (Max)	4 µA
Current - Output High, Low	-, 32mA

Logic Level - Low	0.7V ~ 0.8V
Logic Level - High	1.7V ~ 2V
Max Propagation Delay @ V, Max CL	3.9ns @ 5V, 50pF
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Supplier Device Package	5-X2SON (0.80x0.80)
Package / Case	4-XFDFN Exposed Pad
