74LVC1G38GN,132

In Stock: 150,000
74LVC1G38GN,132 - NXP USA Inc. - Logic - Gates and Inverters
REF: 74LVC1G38GN,132 NXP USA Inc.

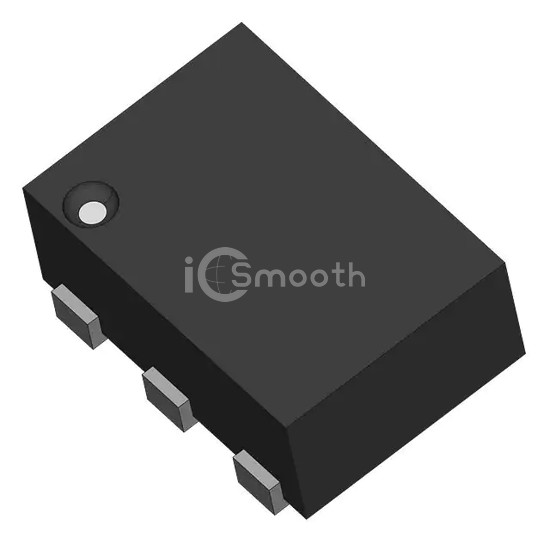

74LVC1G38GN,132

NXP USA Inc.

IC GATE NAND OD 1CH 2-INP 6XSON

74LVC1G38GN,132 is a Logic - Gates and Inverters manufactured by NXP USA Inc.. IC GATE NAND OD 1CH 2-INP 6XSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 6-XFDFN.

Datasheet Request a Quote

In Stock: 150,000

Specifications

15 parameters
Product StatusActive
Logic TypeNAND Gate
Number of Circuits1
Number of Inputs2
FeaturesOpen Drain
Voltage - Supply1.65V ~ 5.5V
Current - Quiescent (Max)4 µA
Current - Output High, Low-, 32mA
Logic Level - Low0.7V ~ 0.8V
Logic Level - High1.7V ~ 2V
Max Propagation Delay @ V, Max CL3.9ns @ 5V, 50pF
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package6-XSON (0.9x1)
Package / Case6-XFDFN
