74LVC1G32GW/DG,125

In Stock: 6,642

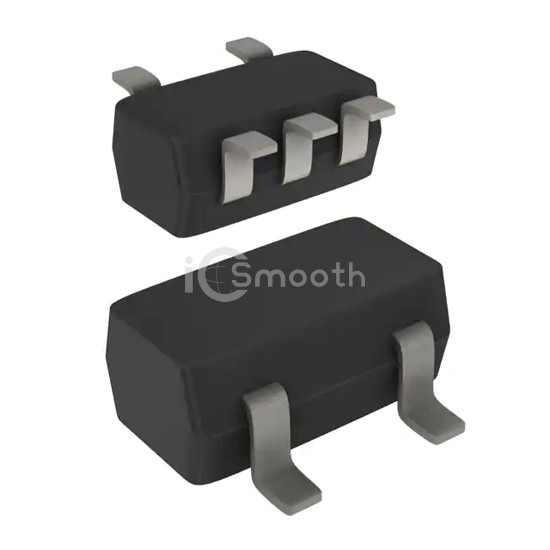

74LVC1G32GW/DG,125 - NXP USA Inc. - Logic - Gates and Inverters
REF: 74LVC1G32GW/DG,125 NXP USA Inc.
74LVC1G32GW/DG,125

NXP USA Inc.

IC GATE OR 1CH 2-INP 5TSSOP

74LVC1G32GW/DG,125 is a Logic - Gates and Inverters manufactured by NXP USA Inc.. IC GATE OR 1CH 2-INP 5TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 5-TSSOP, SC-70-5, SOT-353.

Request a Quote

In Stock: 6,642

Tiered Pricing USD
6,000+ $0.1139 —
9,000+ $0.1122 -2%
15,000+ $0.1102 -3%
21,000+ $0.1091 -4%
30,000+ $0.1080 -5%
75,000+ $0.1056 -7% BEST

Specifications

15 parameters
Product StatusObsolete
Logic TypeOR Gate
Number of Circuits1
Number of Inputs2
Features-
Voltage - Supply1.65V ~ 5.5V
Current - Quiescent (Max)200 µA
Current - Output High, Low32mA, 32mA
Logic Level - Low0.7V ~ 0.8V
Logic Level - High1.7V ~ 2V
Max Propagation Delay @ V, Max CL1.7ns @ 5V, 50pF
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package5-TSSOP
Package / Case5-TSSOP, SC-70-5, SOT-353
