Name: 74LVC1G14GX,125
Brand: NXP USA Inc.
SKU: 74LVC1G14GX,125
Price: 0.20 USD
Availability: InStock

REF: 74LVC1G14GX,125 NXP USA Inc.

74LVC1G14GX,125

NXP USA Inc.

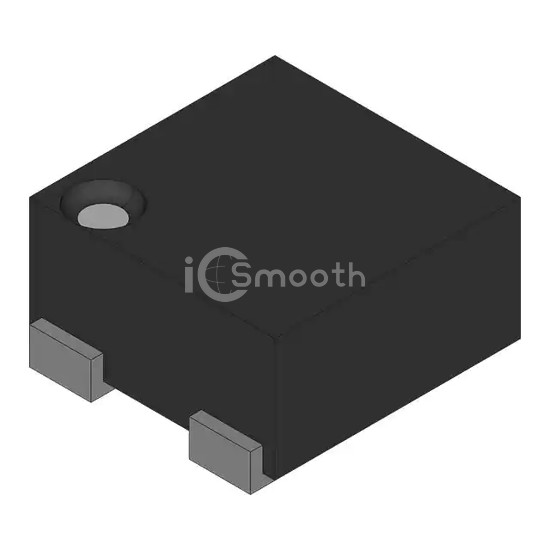

IC INVERT SCHMITT 1CH 1IN 5X2SON

74LVC1G14GX,125 is a Logic - Gates and Inverters manufactured by NXP USA Inc.. IC INVERT SCHMITT 1CH 1IN 5X2SON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 4-XFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 59,900

Tiered Pricing USD

1+ $0.2000 —

10+ $0.1340 -33%

25+ $0.1180 -41%

100+ $0.1006 -50%

250+ $0.0922 -54%

500+ $0.0872 -56%

1,000+ $0.0831 -58%

2,500+ $0.0800 -60% BEST

Specifications

15 parameters

Product Status	Active
Logic Type	Inverter
Number of Circuits	1
Number of Inputs	1
Features	Schmitt Trigger
Voltage - Supply	1.65V ~ 5.5V
Current - Quiescent (Max)	4 µA
Current - Output High, Low	32mA, 32mA

Logic Level - Low	0.46V ~ 1.58V
Logic Level - High	1.14V ~ 2.79V
Max Propagation Delay @ V, Max CL	5ns @ 5V, 50pF
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Supplier Device Package	5-X2SON (0.80x0.80)
Package / Case	4-XFDFN Exposed Pad
