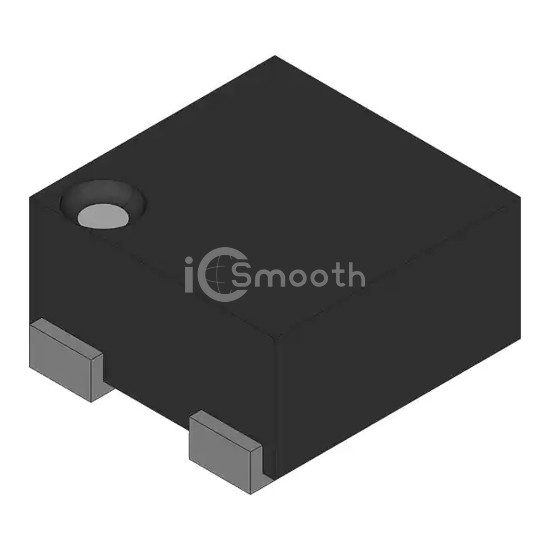

Name: 74LVC1G02GX,125
Brand: NXP USA Inc.
SKU: 74LVC1G02GX,125
Price: 0.18 USD
Availability: InStock

REF: 74LVC1G02GX,125 NXP USA Inc.

74LVC1G02GX,125

NXP USA Inc.

IC GATE NOR 1CH 2-INP 5X2SON

74LVC1G02GX,125 is a Logic - Gates and Inverters manufactured by NXP USA Inc.. IC GATE NOR 1CH 2-INP 5X2SON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 4-XFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 95,131

Tiered Pricing USD

1+ $0.1800 —

10+ $0.1190 -34%

25+ $0.1052 -42%

100+ $0.0893 -50%

250+ $0.0818 -55%

500+ $0.0772 -57%

1,000+ $0.0735 -59%

2,500+ $0.0704 -61% BEST

Specifications

15 parameters

Product Status	Active
Logic Type	NOR Gate
Number of Circuits	1
Number of Inputs	2
Features	-
Voltage - Supply	1.65V ~ 5.5V
Current - Quiescent (Max)	4 µA
Current - Output High, Low	32mA, 32mA

Logic Level - Low	0.7V ~ 0.8V
Logic Level - High	1.7V ~ 2V
Max Propagation Delay @ V, Max CL	4ns @ 5V, 50pF
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Supplier Device Package	5-X2SON (0.80x0.80)
Package / Case	4-XFDFN Exposed Pad
