74LVC109DB,112

In Stock: 8,960

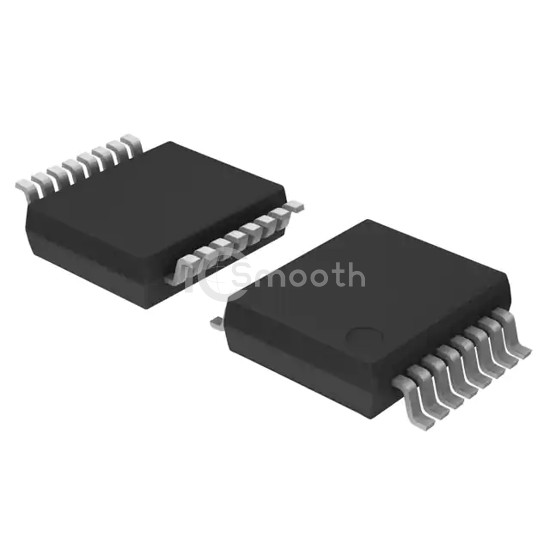

74LVC109DB,112 - NXP USA Inc. - Logic - Flip Flops
REF: 74LVC109DB,112 NXP USA Inc.
74LVC109DB,112

NXP USA Inc.

IC FF JK TYPE DUAL 1BIT 16SSOP

74LVC109DB,112 is a Logic - Flip Flops manufactured by NXP USA Inc.. IC FF JK TYPE DUAL 1BIT 16SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 1.65V ~ 3.6V, package / case 16-SSOP (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 8,960

Specifications

17 parameters
Product StatusObsolete
FunctionSet(Preset) and Reset
TypeJK Type
Output TypeComplementary
Number of Elements2
Number of Bits per Element1
Clock Frequency330 MHz
Max Propagation Delay @ V, Max CL6.8ns @ 3.3V, 50pF
Trigger TypePositive Edge
Current - Output High, Low24mA, 24mA
Voltage - Supply1.65V ~ 3.6V
Current - Quiescent (Iq)10 µA
Input Capacitance5 pF
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Supplier Device Package16-SSOP
Package / Case16-SSOP (0.209", 5.30mm Width)
