74LV273DB,118

In Stock: 168,000

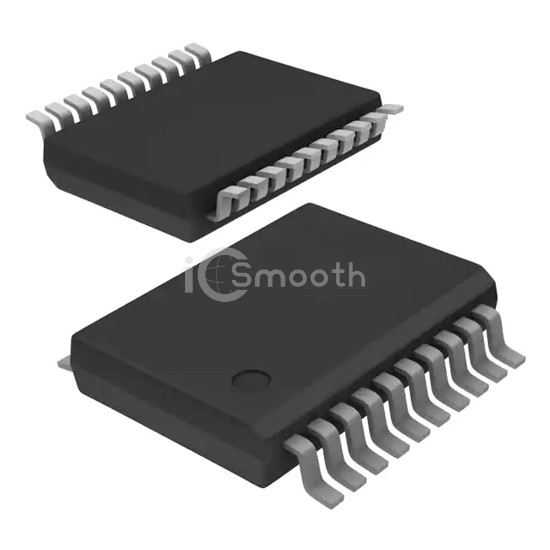

74LV273DB,118 - NXP USA Inc. - Logic - Flip Flops
REF: 74LV273DB,118 NXP USA Inc.
74LV273DB,118

NXP USA Inc.

IC FF D-TYPE SNGL 8BIT 20SSOP

74LV273DB,118 is a Logic - Flip Flops manufactured by NXP USA Inc.. IC FF D-TYPE SNGL 8BIT 20SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 1V ~ 5.5V, package / case 20-SSOP (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 168,000

Specifications

17 parameters
Product StatusObsolete
FunctionMaster Reset
TypeD-Type
Output TypeNon-Inverted
Number of Elements1
Number of Bits per Element8
Clock Frequency100 MHz
Max Propagation Delay @ V, Max CL19ns @ 5V, 50pF
Trigger TypePositive Edge
Current - Output High, Low12mA, 12mA
Voltage - Supply1V ~ 5.5V
Current - Quiescent (Iq)160 µA
Input Capacitance3.5 pF
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Supplier Device Package20-SSOP
Package / Case20-SSOP (0.209", 5.30mm Width)
