74HCT2G14GW-Q100125

In Stock: 2,636

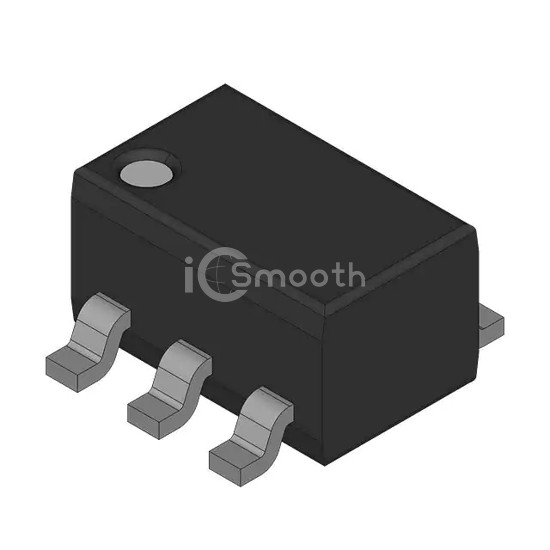

74HCT2G14GW-Q100125 - NXP USA Inc. - Logic - Gates and Inverters
REF: 74HCT2G14GW-Q100125 NXP USA Inc.
74HCT2G14GW-Q100125

NXP USA Inc.

IC INVERT SCHMITT 2CH 2IN 6TSSOP

74HCT2G14GW-Q100125 is a Logic - Gates and Inverters manufactured by NXP USA Inc.. IC INVERT SCHMITT 2CH 2IN 6TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 4.5V ~ 5.5V, package / case 6-TSSOP, SC-88, SOT-363.

Datasheet Request a Quote

In Stock: 2,636

Specifications

15 parameters
Product StatusActive
Logic TypeInverter
Number of Circuits2
Number of Inputs2
FeaturesSchmitt Trigger
Voltage - Supply4.5V ~ 5.5V
Current - Quiescent (Max)1 µA
Current - Output High, Low4mA, 4mA
Logic Level - Low0.5V ~ 0.6V
Logic Level - High1.9V ~ 2.1V
Max Propagation Delay @ V, Max CL32ns @ 4.5V, 50pF
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device PackageSOT-363
Package / Case6-TSSOP, SC-88, SOT-363
