74HCT1G32GW-Q100125

In Stock: 7,051

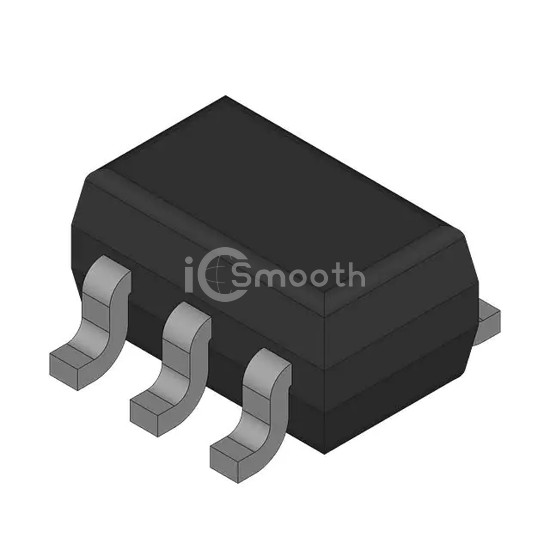

74HCT1G32GW-Q100125 - NXP USA Inc. - Logic - Gates and Inverters
REF: 74HCT1G32GW-Q100125 NXP USA Inc.
74HCT1G32GW-Q100125

NXP USA Inc.

IC GATE OR 1CH 2-INP 5TSSOP

74HCT1G32GW-Q100125 is a Logic - Gates and Inverters manufactured by NXP USA Inc.. IC GATE OR 1CH 2-INP 5TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 4.5V ~ 5.5V, package / case 5-TSSOP, SC-70-5, SOT-353.

Datasheet Request a Quote

In Stock: 7,051

Specifications

15 parameters
Product StatusActive
Logic TypeOR Gate
Number of Circuits1
Number of Inputs2
Features-
Voltage - Supply4.5V ~ 5.5V
Current - Quiescent (Max)20 µA
Current - Output High, Low2mA, 2mA
Logic Level - Low0.8V
Logic Level - High2V
Max Propagation Delay @ V, Max CL10ns @ 4.5V, 50pF
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package5-TSSOP
Package / Case5-TSSOP, SC-70-5, SOT-353
