74HC2G02DC-Q100125

In Stock: 6,154

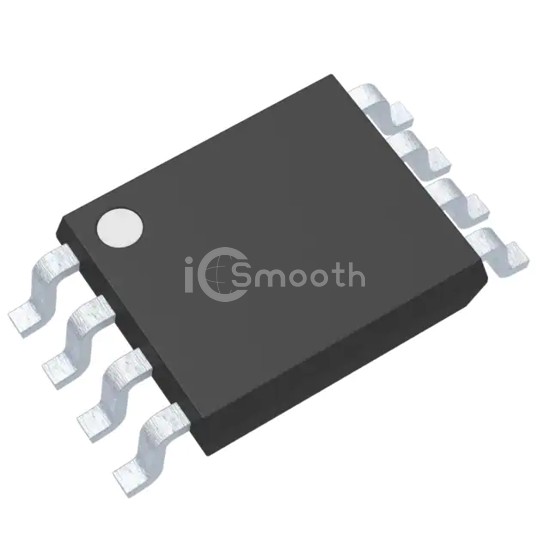

74HC2G02DC-Q100125 - NXP USA Inc. - Logic - Gates and Inverters
REF: 74HC2G02DC-Q100125 NXP USA Inc.
74HC2G02DC-Q100125

NXP USA Inc.

IC GATE NOR 2CH 2-INP 8VSSOP

74HC2G02DC-Q100125 is a Logic - Gates and Inverters manufactured by NXP USA Inc.. IC GATE NOR 2CH 2-INP 8VSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2V ~ 6V, package / case 8-VFSOP (0.091", 2.30mm Width).

Datasheet Request a Quote

In Stock: 6,154

Specifications

15 parameters
Product StatusActive
Logic TypeNOR Gate
Number of Circuits2
Number of Inputs2
Features-
Voltage - Supply2V ~ 6V
Current - Quiescent (Max)20 µA
Current - Output High, Low5.2mA, 5.2mA
Logic Level - Low0.5V ~ 1.8V
Logic Level - High1.5V ~ 4.2V
Max Propagation Delay @ V, Max CL16ns @ 6V, 50pF
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package8-VSSOP
Package / Case8-VFSOP (0.091", 2.30mm Width)
