74HC1GU04GV-Q100125

In Stock: 26,648

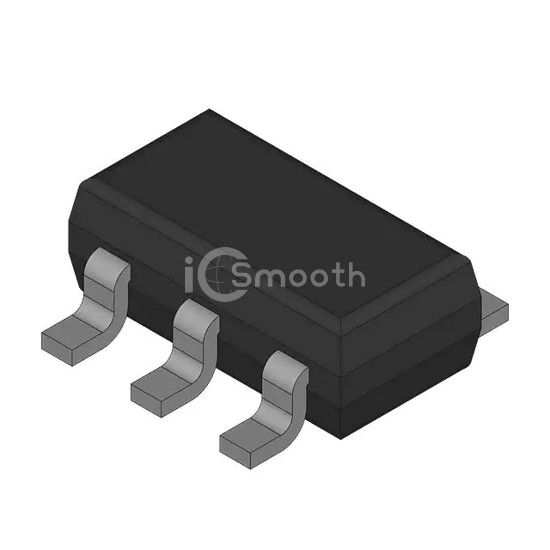

74HC1GU04GV-Q100125 - NXP USA Inc. - Logic - Gates and Inverters
REF: 74HC1GU04GV-Q100125 NXP USA Inc.
74HC1GU04GV-Q100125

NXP USA Inc.

IC INVERTER 1CH 1-INP SC74A

74HC1GU04GV-Q100125 is a Logic - Gates and Inverters manufactured by NXP USA Inc.. IC INVERTER 1CH 1-INP SC74A. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2V ~ 6V, package / case SC-74A, SOT-753.

Datasheet Request a Quote

In Stock: 26,648

Specifications

15 parameters
Product StatusActive
Logic TypeInverter
Number of Circuits1
Number of Inputs1
Features-
Voltage - Supply2V ~ 6V
Current - Quiescent (Max)20 µA
Current - Output High, Low2.6mA, 2.6mA
Logic Level - Low0.3V ~ 1.2V
Logic Level - High1.7V ~ 4.8V
Max Propagation Delay @ V, Max CL18ns @ 6V, 50pF
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package5-TSOP
Package / CaseSC-74A, SOT-753
