74HC1G08GV/C125

In Stock: 1,298

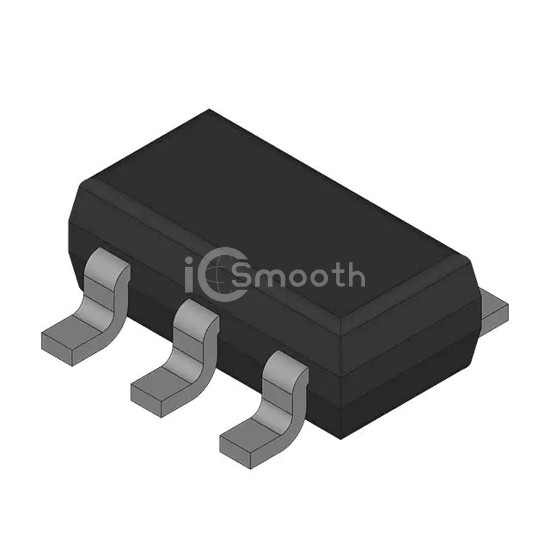

74HC1G08GV/C125 - NXP USA Inc. - Logic - Gates and Inverters
REF: 74HC1G08GV/C125 NXP USA Inc.
74HC1G08GV/C125

NXP USA Inc.

IC GATE AND 1CH 2-INP SC74A

74HC1G08GV/C125 is a Logic - Gates and Inverters manufactured by NXP USA Inc.. IC GATE AND 1CH 2-INP SC74A. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2V ~ 6V, package / case SC-74A, SOT-753.

Datasheet Request a Quote

In Stock: 1,298

Specifications

15 parameters
Product StatusActive
Logic TypeAND Gate
Number of Circuits1
Number of Inputs2
Features-
Voltage - Supply2V ~ 6V
Current - Quiescent (Max)20 µA
Current - Output High, Low2.6mA, 2.6mA
Logic Level - Low0.5V ~ 1.8V
Logic Level - High1.5V ~ 4.2V
Max Propagation Delay @ V, Max CL23ns @ 6V, 50pF
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package5-TSOP
Package / CaseSC-74A, SOT-753
