74AXP1G10GSH

In Stock: 6,193

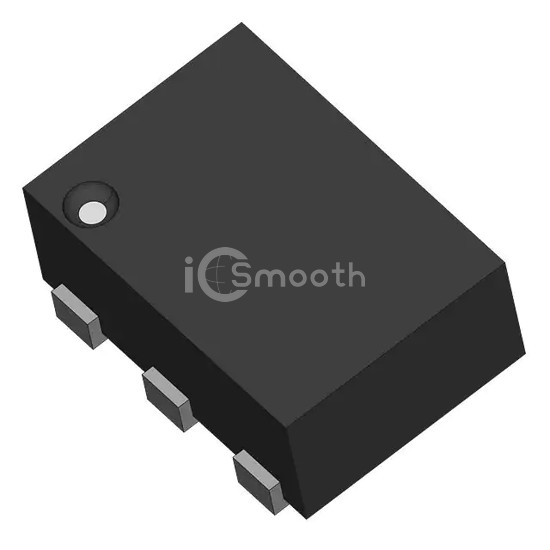

74AXP1G10GSH - NXP USA Inc. - Logic - Gates and Inverters
REF: 74AXP1G10GSH NXP USA Inc.
74AXP1G10GSH

NXP USA Inc.

IC GATE NAND 1CH 3-INP 6XSON

74AXP1G10GSH is a Logic - Gates and Inverters manufactured by NXP USA Inc.. IC GATE NAND 1CH 3-INP 6XSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 0.7V ~ 2.75V, package / case 6-XFDFN.

Datasheet Request a Quote

In Stock: 6,193

Specifications

15 parameters
Product StatusActive
Logic TypeNAND Gate
Number of Circuits1
Number of Inputs3
Features-
Voltage - Supply0.7V ~ 2.75V
Current - Quiescent (Max)600 nA
Current - Output High, Low8mA, 8mA
Logic Level - Low-
Logic Level - High-
Max Propagation Delay @ V, Max CL3.2ns @ 2.5V, 5pF
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device Package6-XSON, SOT1202 (1x1)
Package / Case6-XFDFN
