74AHC2G00GD,125

In Stock: 140,228

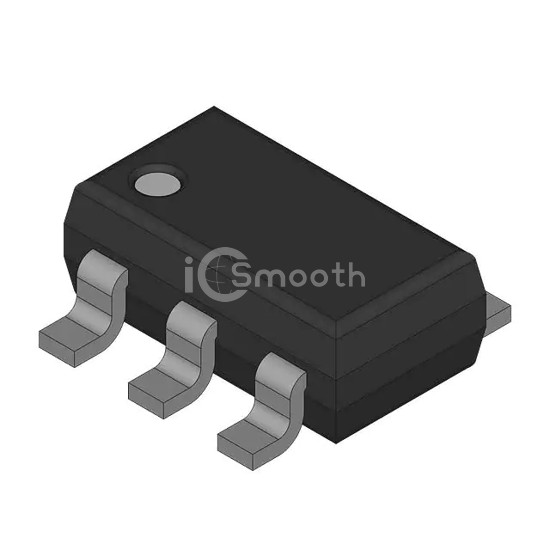

74AHC2G00GD,125 - NXP USA Inc. - Logic - Gates and Inverters
REF: 74AHC2G00GD,125 NXP USA Inc.
74AHC2G00GD,125

NXP USA Inc.

NAND GATE, AHC/VHC/H/U/V SERIES,

74AHC2G00GD,125 is a Logic - Gates and Inverters manufactured by NXP USA Inc.. NAND GATE, AHC/VHC/H/U/V SERIES,. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2V ~ 5.5V, package / case 8-XFDFN.

Datasheet Request a Quote

In Stock: 140,228

Specifications

15 parameters
Product StatusActive
Logic TypeNAND Gate
Number of Circuits2
Number of Inputs2
Features-
Voltage - Supply2V ~ 5.5V
Current - Quiescent (Max)10 µA
Current - Output High, Low8mA, 8mA
Logic Level - Low0.5V ~ 1.65V
Logic Level - High1.5V ~ 3.85V
Max Propagation Delay @ V, Max CL7.5ns @ 5V, 50pF
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package8-XSON (2x3)
Package / Case8-XFDFN
