PMEG3020CEP,115

In Stock: 386,248

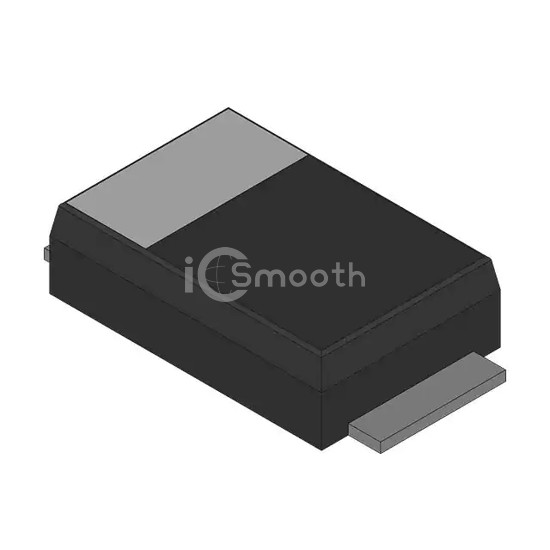

PMEG3020CEP,115 - NXP Semiconductors - Diodes - Rectifiers - Single
REF: PMEG3020CEP,115 NXP Semiconductors
PMEG3020CEP,115

NXP Semiconductors

NEXPERIA PMEG3020CEP - RECTIFIER

PMEG3020CEP,115 is a Diodes - Rectifiers - Single manufactured by NXP Semiconductors. NEXPERIA PMEG3020CEP - RECTIFIER. Key specifications: mounting type Surface Mount, package / case SOD-128.

Datasheet Request a Quote

In Stock: 386,248

Tiered Pricing USD
3,000+ $0.1383 —
6,000+ $0.1262 -9%
9,000+ $0.1200 -13%
15,000+ $0.1131 -18%
21,000+ $0.1090 -21%
30,000+ $0.1050 -24%
75,000+ $0.1000 -28% BEST

Specifications

13 parameters
Product StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)30 V
Current - Average Rectified (Io)2A
Voltage - Forward (Vf) (Max) @ If420 mV @ 2 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr1.5 mA @ 30 V
Capacitance @ Vr, F170pF @ 1V, 1MHz
Mounting TypeSurface Mount
Package / CaseSOD-128
Supplier Device PackageSOD-128/CFP5
Operating Temperature - Junction150°C (Max)
