PMEG2015EH,115

In Stock: 100,251

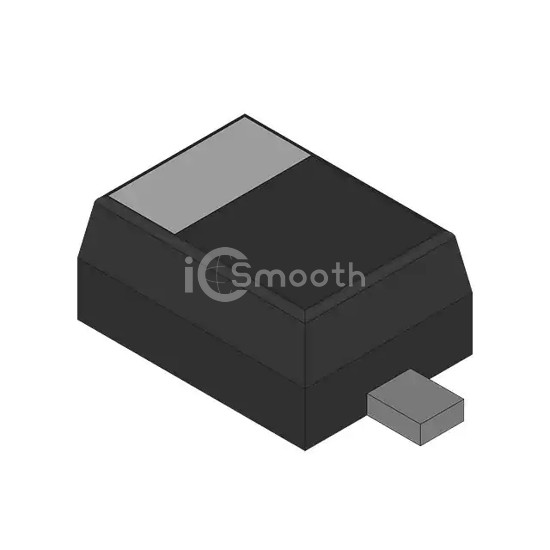

PMEG2015EH,115 - NXP Semiconductors - Diodes - Rectifiers - Single
REF: PMEG2015EH,115 NXP Semiconductors
PMEG2015EH,115

NXP Semiconductors

NEXPERIA PMEG2015EH - RECTIFIER

PMEG2015EH,115 is a Diodes - Rectifiers - Single manufactured by NXP Semiconductors. NEXPERIA PMEG2015EH - RECTIFIER. Key specifications: mounting type Surface Mount, package / case SOD-123F.

Datasheet Request a Quote

In Stock: 100,251

Tiered Pricing USD
3,000+ $0.1232 —
6,000+ $0.1122 -9%
9,000+ $0.1066 -14%
15,000+ $0.1003 -19%
21,000+ $0.0965 -22%
30,000+ $0.0929 -25%
75,000+ $0.0868 -30% BEST

Specifications

13 parameters
Product StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)20 V
Current - Average Rectified (Io)1.5A (DC)
Voltage - Forward (Vf) (Max) @ If660 mV @ 1.5 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr70 µA @ 20 V
Capacitance @ Vr, F50pF @ 1V, 1MHz
Mounting TypeSurface Mount
Package / CaseSOD-123F
Supplier Device PackageSOD-123F
Operating Temperature - Junction150°C (Max)
