Name: IL 3685E
Brand: NVE Corp/Isolation Products
SKU: IL 3685E
Price: 6.54 USD
Availability: InStock

REF: IL 3685E NVE Corp/Isolation Products

IL 3685E

NVE Corp/Isolation Products

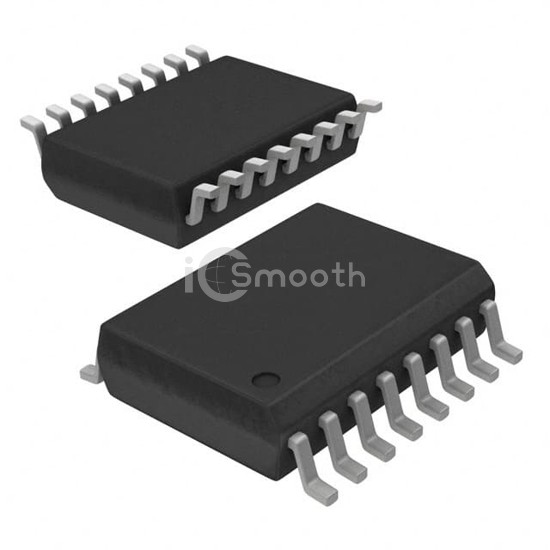

DGT ISO 2.5KV RS422/RS485 16SOIC

IL 3685E is a Digital Isolators manufactured by NVE Corp/Isolation Products. DGT ISO 2.5KV RS422/RS485 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 3V ~ 5.5V, 4.5V ~ 5.5V, package / case 16-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 9,831

Tiered Pricing USD

1+ $6.5400 —

10+ $5.0320 -23%

50+ $4.4268 -32%

100+ $4.2392 -35%

250+ $4.0412 -38%

500+ $3.9219 -40%

1,000+ $3.8237 -42%

2,500+ $3.7200 -43% BEST

Specifications

18 parameters

Product Status	Active
Technology	GMR (Giant Magnetoresistive)
Type	RS422, RS485
Isolated Power	No
Number of Channels	3
Inputs - Side 1/Side 2	2/1
Channel Type	Unidirectional
Voltage - Isolation	2500Vrms
Common Mode Transient Immunity (Min)	30kV/µs

Data Rate	40Mbps
Propagation Delay tpLH / tpHL (Max)	30ns, 30ns
Pulse Width Distortion (Max)	-
Rise / Fall Time (Typ)	-
Voltage - Supply	3V ~ 5.5V, 4.5V ~ 5.5V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package	16-SOIC
